为什么要用 rabbitMQ？

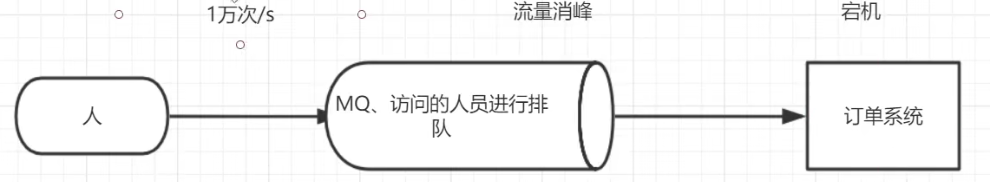

1. 流量削峰

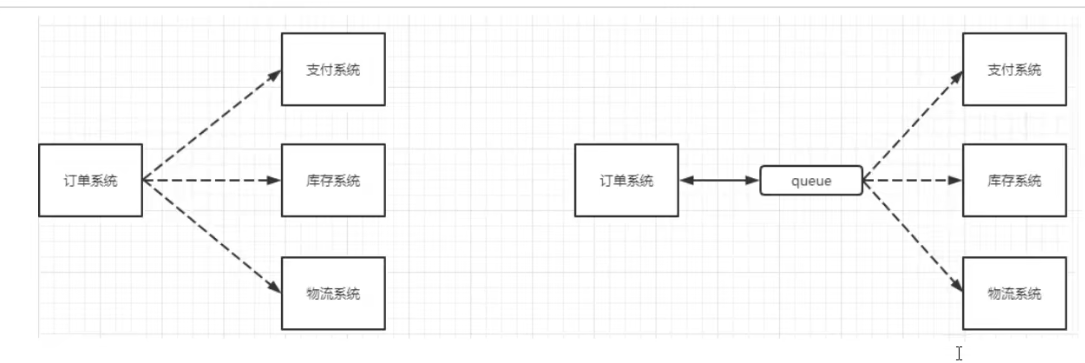

2. 应用解耦
3. 异步处理

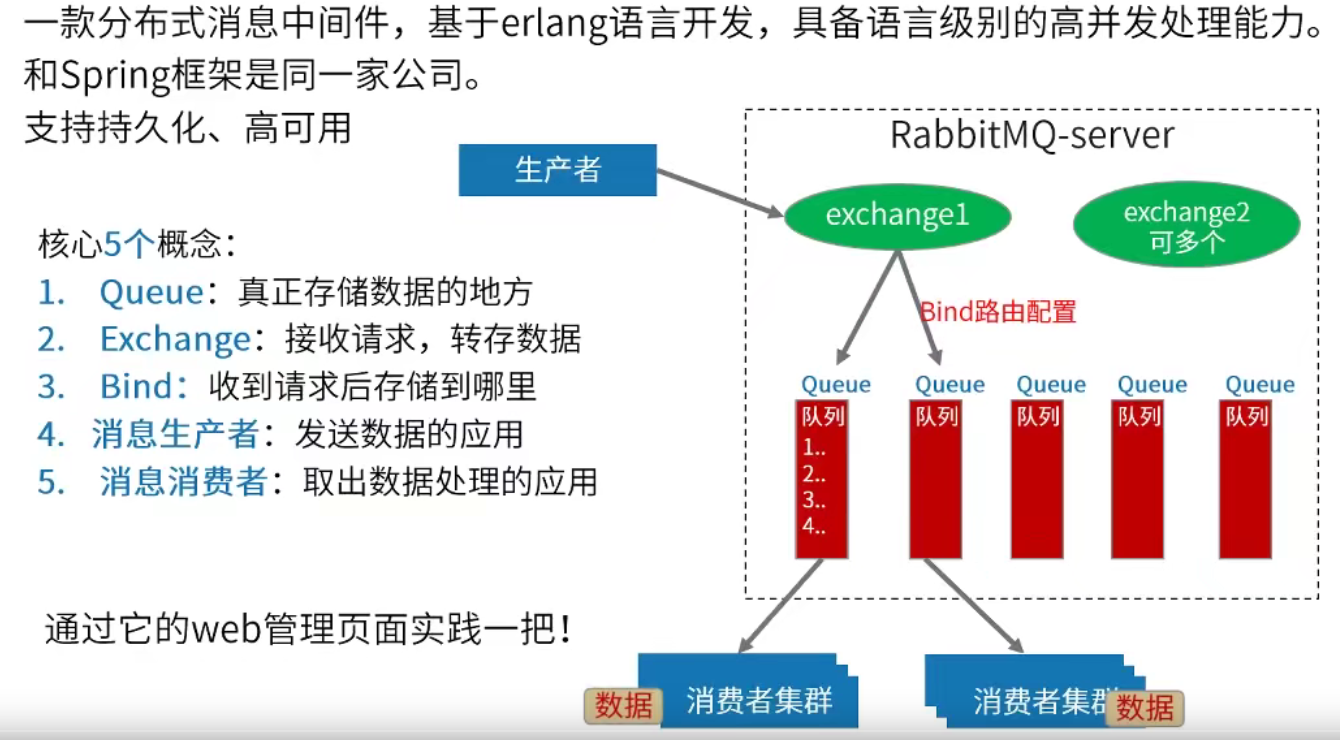

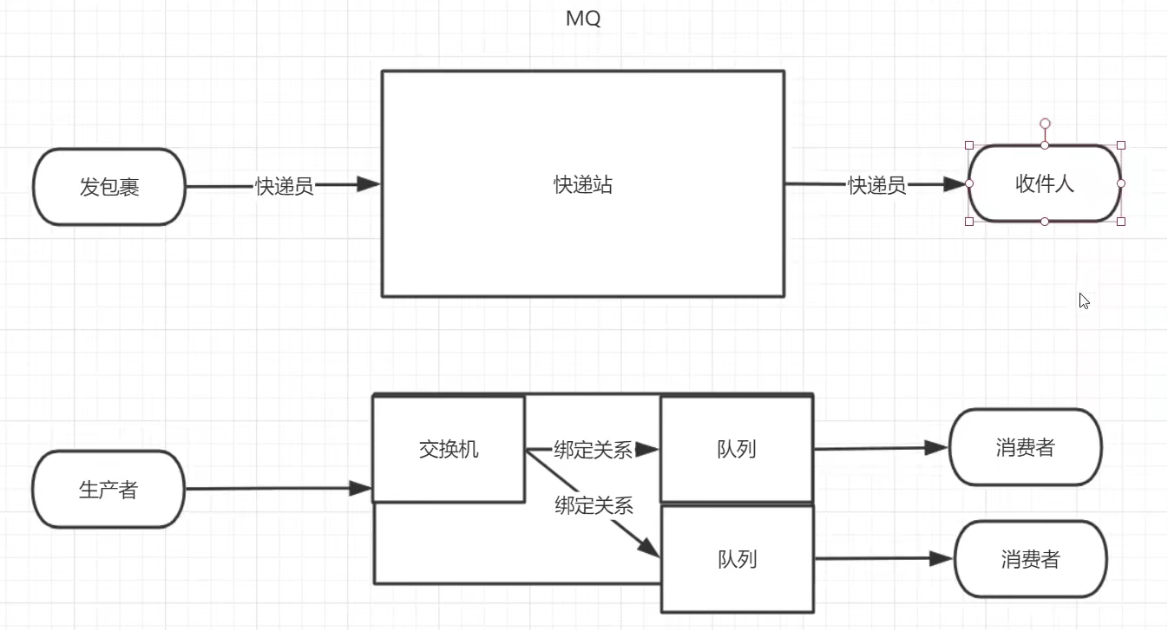

RabbitMQ 核心部分

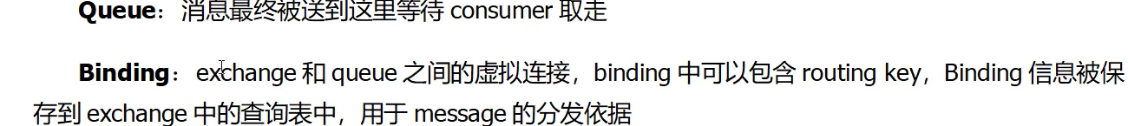

各个名词介绍

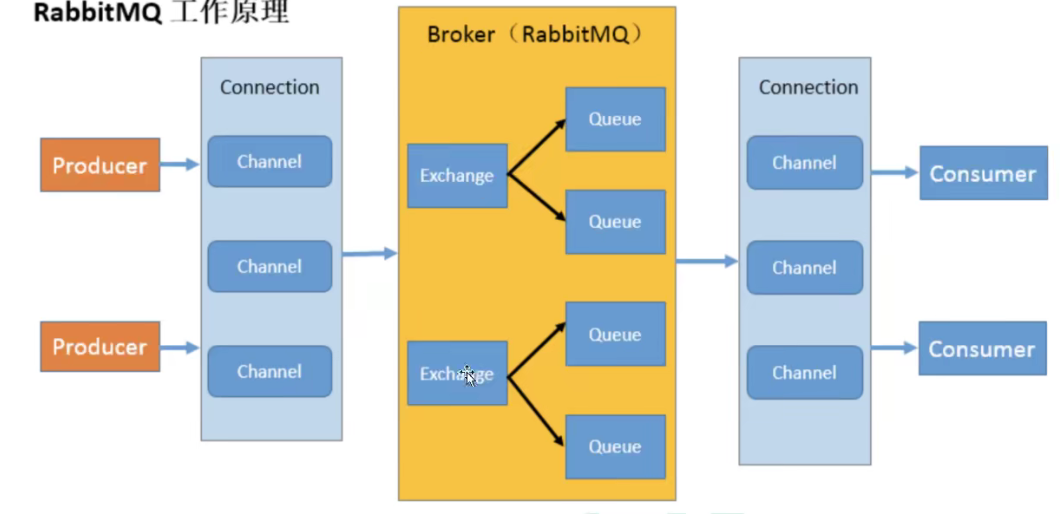

RabbitMQ 工作原理
安装
rabbitmq.com/download.html
erlang 和 rabbitMQ 版本匹配：
https://www.cnblogs.com/gne-hwz/p/10714013.html
安装：https://blog.csdn.net/almahehe/article/details/75390572
（建议看尚硅谷视频进行快速安装）
安装之后，可以访问 ip:15672 ，查看发送消息的端口（5672）和用户。
简单队列模式
生产者代码
- 项目依赖：
<dependencies>
<dependency>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<version>3.8.1</version>
</dependency>
<dependency>
<groupId>com.rabbitmq</groupId>
<artifactId>amqp-client</artifactId>
<version>5.8.0</version>
</dependency>
<dependency>
<groupId>commons-io</groupId>
<artifactId>commons-io</artifactId>
<version>2.6</version>
</dependency>
<dependency>
<groupId>org.slf4j</groupId>
<artifactId>slf4j-simple</artifactId>
<version>1.7.25</version>
<scope>test</scope>
</dependency>
</dependencies>
|
- 生产者代码：
japackage com.atguigu.rabbitmq.one;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;
import java.io.IOException;
import java.util.concurrent.TimeoutException;
public class Producer {
private static final String QUEUE_NAME = "hello";
public static void main(String[] args) throws IOException, TimeoutException {
ConnectionFactory factory = new ConnectionFactory();
factory.setHost("59.110.171.189");
factory.setUsername("admin");
factory.setPassword("123");
Connection connection = factory.newConnection();
Channel channel = connection.createChannel();
channel.queueDeclare(QUEUE_NAME,false,false,false,null);
String message = "hello world";
channel.basicPublish("",QUEUE_NAME,null,message.getBytes());
System.out.println("消息发送完毕");
}
}
|
如果运行报超时错误，需要打开云服务器的安全组 5672 端口。
（参考博客：https://www.cnblogs.com/jxearlier/p/11920825.html）
消费者代码
package com.atguigu.rabbitmq.one;
import com.rabbitmq.client.*;
import java.io.IOException;
import java.util.concurrent.TimeoutException;
/**
* @author LiFang
* @version 1.0
* @since 2021/11/29 15:04
* 消费者:接收消息
*/
public class Consumer {
//队列名称
public static final String QUEUE_NAME = "hello";
//接收消息
public static void main(String[] args) throws IOException, TimeoutException {
//创建连接工厂
ConnectionFactory factory = new ConnectionFactory();
factory.setHost("59.110.171.189");
factory.setUsername("admin");
factory.setPassword("123");
Connection connection = factory.newConnection();
Channel channel = connection.createChannel();
//声明 接收消息
DeliverCallback deliverCallback = (consumerTag, message) -> {
System.out.println(message);
};
//取消消息时的回调
CancelCallback cancelCallback = consumerTag -> {
System.out.println("消息消费被中断");
};
/**
* 消费者 消费消息
* 1.消费哪个队列
* 2. 消费成功之后是否要自动应答，true代表自动应答,false代表手动应答。
* 3. 消费者未成功消费的回调。
* 4. 消费者取消消费的回调
*/
channel.basicConsume(QUEUE_NAME, true,deliverCallback,cancelCallback);
}
}
|

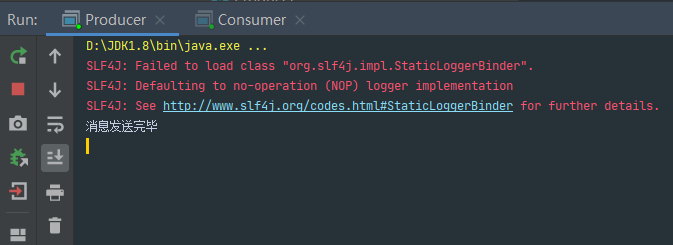

运行结果：
测试生产者和消费者代码：
- 先运行消费者代码，发现没有消息，再运行生产者代码，发送消息，再看消费者代码控制台，此时已经接收到消息。

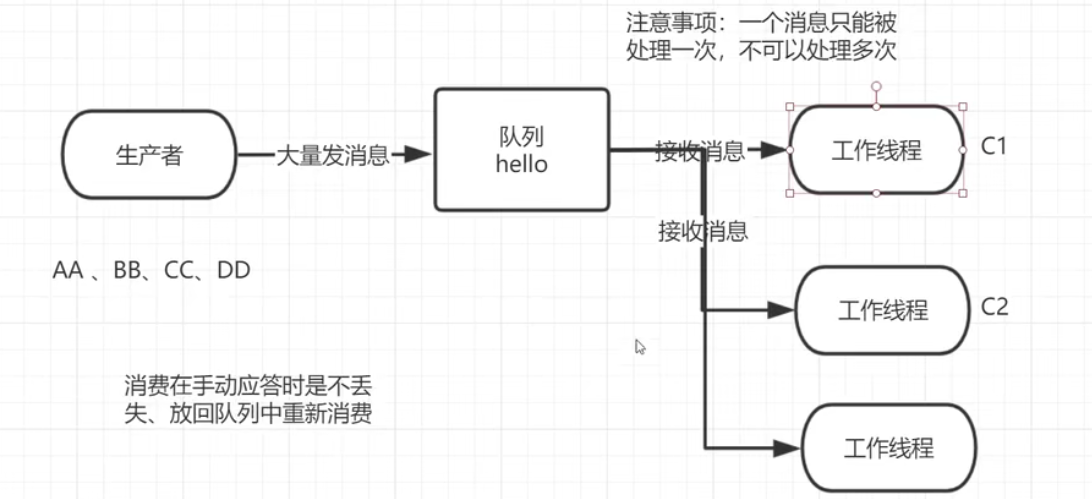

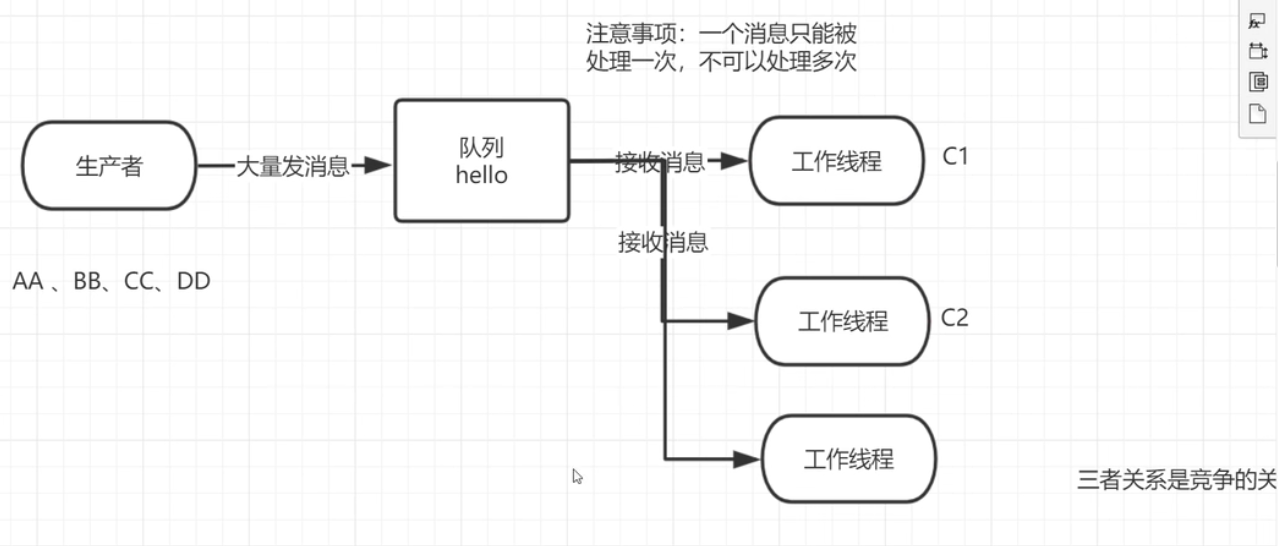

工作队列模式
轮训分发消息
- 抽取连接工厂工具类：
package com.atguigu.rabbitmq.utils;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;
import java.io.IOException;
import java.util.concurrent.TimeoutException;
/**
* @author LiFang
* @version 1.0
* @since 2021/11/29 19:48
* 连接工厂创建信道的工具类
*/
public class RabbitMqUtils {
public static Channel getChannel() throws IOException, TimeoutException {
//创建连接工厂
ConnectionFactory factory = new ConnectionFactory();
factory.setHost("59.110.171.189");
factory.setUsername("admin");
factory.setPassword("123");
Connection connection = factory.newConnection();
Channel channel = connection.createChannel();
return channel;
}
}
|
- 工作线程代码：（消费者）
package com.atguigu.rabbitmq.two;
import com.atguigu.rabbitmq.utils.RabbitMqUtils;
import com.rabbitmq.client.CancelCallback;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.DeliverCallback;
import com.rabbitmq.client.Delivery;
import java.io.IOException;
import java.util.concurrent.TimeoutException;
/**
* @author LiFang
* @version 1.0
* @since 2021/11/29 19:55
* 这是一个工作线程（相当于之前的消费者）
*/
public class Worker01 {
//队列名称
public static final String QUEUE_NAME = "hello";
//接收消息 的工作线程
public static void main(String[] args) throws IOException, TimeoutException {
Channel channel = RabbitMqUtils.getChannel();
//消息的接收
DeliverCallback deliverCallback = (consumerTag, message) -> {
System.out.println("接收到的消息：" + new String(message.getBody()));
};
//消息接收被取消时 执行
CancelCallback cancelCallback = (consumerTag) -> {
System.out.println(consumerTag + "消费者取消消费接口回调逻辑");
};
/*
* 消费者 消费消息
* 1.消费哪个队列
* 2. 消费成功之后是否要自动应答，true代表自动应答,false代表手动应答。
* 3. 消费者未成功消费的回调。
* 4. 消费者取消消费的回调
*/
channel.basicConsume(QUEUE_NAME, true, deliverCallback, cancelCallback);
}
}
|

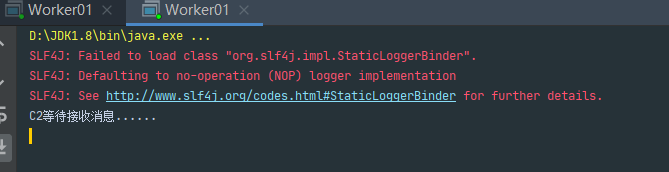

- 启动两个工作线程（消费者）

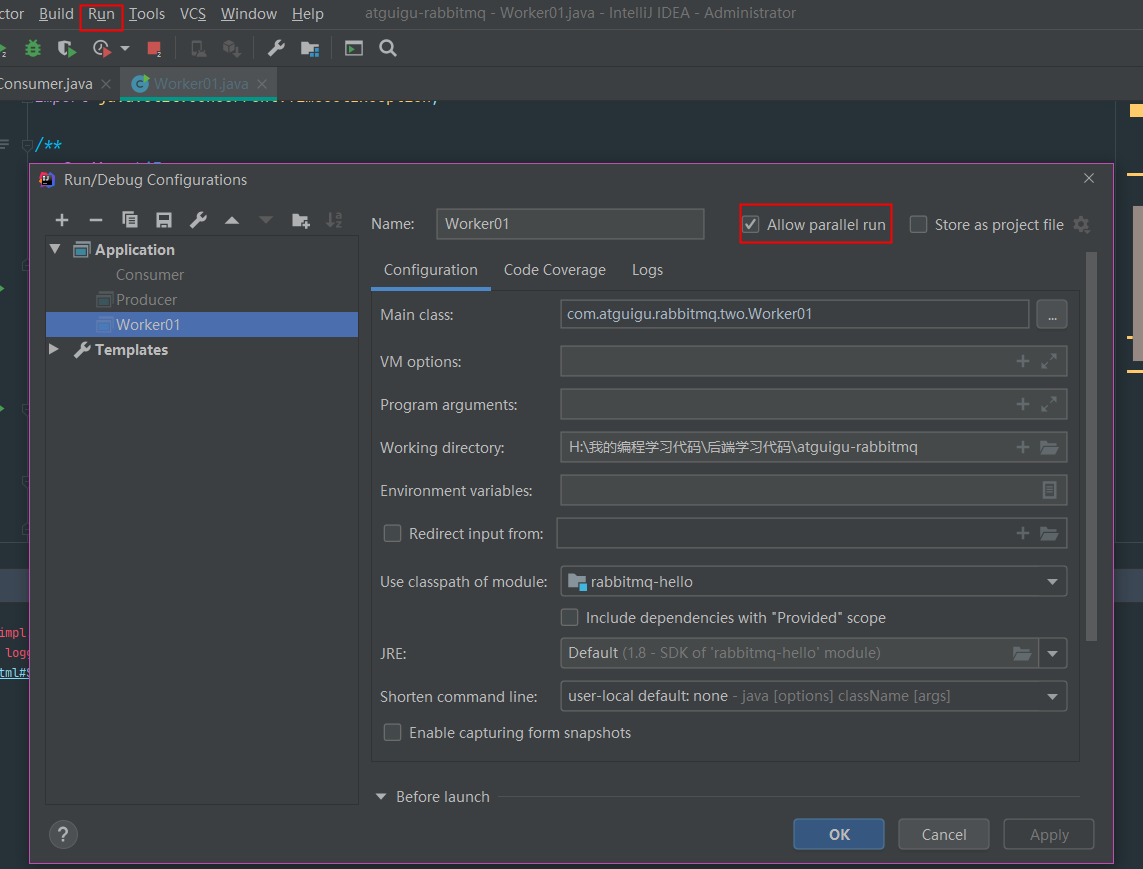

前提是在 idea 设置允许方法多个并行运行：
- 生产者代码：
package com.atguigu.rabbitmq.two;
import com.atguigu.rabbitmq.utils.RabbitMqUtils;
import com.rabbitmq.client.Channel;
import java.io.IOException;
import java.util.Scanner;
import java.util.concurrent.TimeoutException;
/**
* @author LiFang
* @version 1.0
* @since 2021/11/29 21:04
* 生产者 发送大量消息
*/
public class Task01 {
public static final String QUEUE_NAME = "hello";
public static void main(String[] args) throws IOException, TimeoutException {
Channel channel = RabbitMqUtils.getChannel();
/*
* 生成一个队列
* 参数；1.队列名称
* 2.队列里面的消息是否持久化（磁盘），默认消息存储在内存中（不持久化false）
* 3.该队列是否只供一个消费者进行消费，是否消息独有，true只允许一个消费者进行消费，默认是false（可以多个消费者消费）
4. 是否自动删除，最后一个消费者断开连接后，该队列是否自动删除，true自动删除，false不自动删除
5.其他参数（延迟消息......）
*/
channel.queueDeclare(QUEUE_NAME, false, false, false, null);
Scanner scanner = new Scanner(System.in);
while (scanner.hasNext()) {
String message = scanner.next();
channel.basicPublish("", QUEUE_NAME, null, message.getBytes());
System.out.println("发送消息完成：" + message);
}
}
}
|

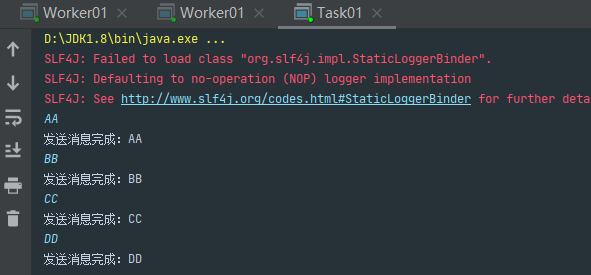

- 测试：启动生产者

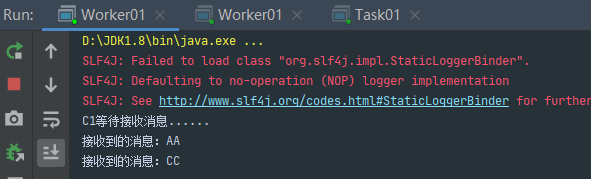

可以看见消费者轮循接收消息：
消息应答
自动应答
不建议使用，仅适用在消费者可以高效并以某种速率能够处理这些消息的情况。
手动应答

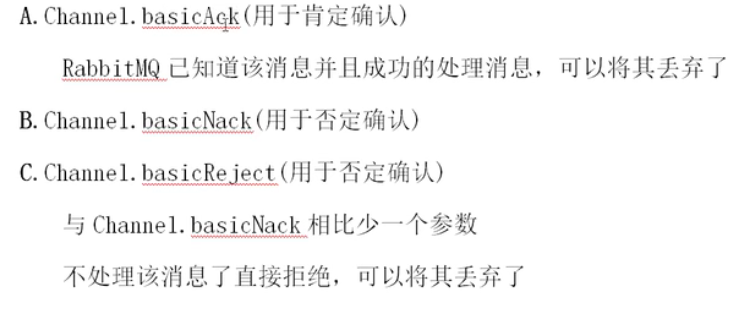

消息应答的方法：
批量处理 Multiple
手动应答的好处：可以批量应答，并减少网络拥堵。
但是批量应答可能会丢失消息。所以尽量不要批量应答，将 multiple 设置为 false。

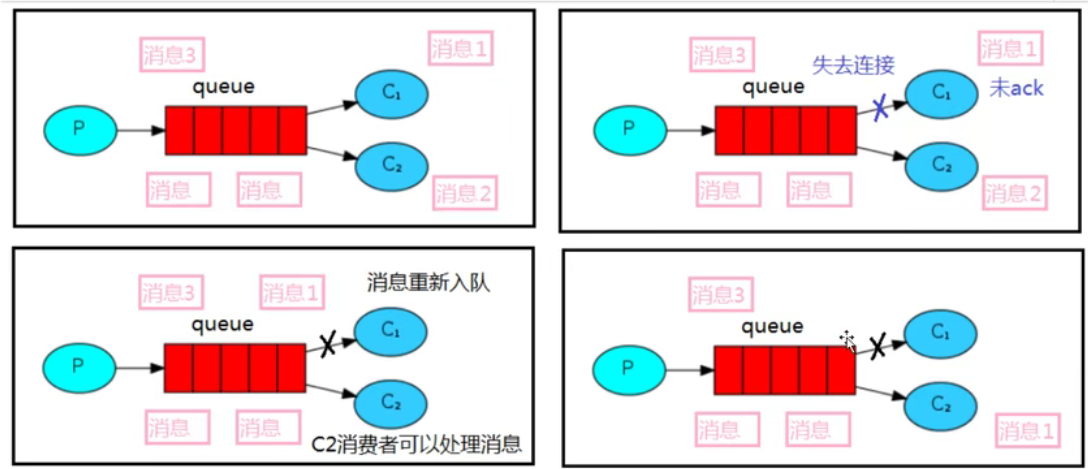

消息自动重新入队
测试：
- 生产者：
package com.atguigu.rabbitmq.three;
import com.atguigu.rabbitmq.utils.RabbitMqUtils;
import com.rabbitmq.client.Channel;
import java.io.IOException;
import java.util.Scanner;
import java.util.concurrent.TimeoutException;
/**
* @author LiFang
* @version 1.0
* @since 2021/12/1 14:46
* 消息在手动应答时不丢失,放回队列中重新消费
*/
public class Task2 {
//队列名称
public static final String TASK_QUEUE_NAME = "ack_queue";
public static void main(String[] args) throws IOException, TimeoutException {
Channel channel = RabbitMqUtils.getChannel();
//声明队列
channel.queueDeclare(TASK_QUEUE_NAME, false, false, false, null);
Scanner scanner = new Scanner(System.in);
while (scanner.hasNext()) {
String message = scanner.next();
channel.basicPublish("", TASK_QUEUE_NAME, null, message.getBytes());
System.out.println("生产者发出消息：" + message);
}
}
}
|
- 两个消费者（消息手动应答）：
消费者一：
package com.atguigu.rabbitmq.three;
import com.atguigu.rabbitmq.utils.RabbitMqUtils;
import com.atguigu.rabbitmq.utils.SleepUtils;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.DeliverCallback;
import java.io.IOException;
import java.nio.charset.StandardCharsets;
import java.util.concurrent.TimeoutException;
/**
* @author LiFang
* @version 1.0
* @since 2021/12/1 14:58
* 消息在手动应答时不丢失，放回队列中重新消费
*/
public class Work03 {
//队列名称
public static final String TASK_QUEUE_NAME = "ack_queue";
//接收消息
public static void main(String[] args) throws IOException, TimeoutException {
Channel channel = RabbitMqUtils.getChannel();
System.out.println("C1等待接收消息处理时间较短");
DeliverCallback deliverCallback = (consumerTag, message) -> {
//沉睡1s
SleepUtils.sleep(1);
System.out.println("接收到的消息：" + new String(message.getBody(), StandardCharsets.UTF_8));
//手动应答（通过信道）
/*参数：
1. 消息的标记 tag
2. 是否批量应答 false:不批量应答信道中的消息，true:批量
*/
channel.basicAck(message.getEnvelope().getDeliveryTag(), false);
};
//采用手动应答
boolean autoAck = false;
channel.basicConsume(TASK_QUEUE_NAME, autoAck, deliverCallback, (consumerTag -> {
System.out.println(consumerTag + "消费者取消消费接口的回调逻辑");
}));
}
}
|
消费者二：
package com.atguigu.rabbitmq.three;
import com.atguigu.rabbitmq.utils.RabbitMqUtils;
import com.atguigu.rabbitmq.utils.SleepUtils;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.DeliverCallback;
import java.io.IOException;
import java.nio.charset.StandardCharsets;
import java.util.concurrent.TimeoutException;
/**
* @author LiFang
* @version 1.0
* @since 2021/12/1 14:58
* 消息在手动应答时不丢失，放回队列中重新消费
*/
public class Work04 {
//队列名称
public static final String TASK_QUEUE_NAME = "ack_queue";
//接收消息
public static void main(String[] args) throws IOException, TimeoutException {
Channel channel = RabbitMqUtils.getChannel();
System.out.println("C2等待接收消息处理时间较短");
DeliverCallback deliverCallback = (consumerTag, message) -> {
//沉睡1s
SleepUtils.sleep(30);
System.out.println("接收到的消息：" + new String(message.getBody(), StandardCharsets.UTF_8));
//手动应答（通过信道）
/*参数：
1. 消息的标记 tag
2. 是否批量应答 false:不批量应答信道中的消息，true:批量
*/
channel.basicAck(message.getEnvelope().getDeliveryTag(), false);
};
//采用手动应答
boolean autoAck = false;
channel.basicConsume(TASK_QUEUE_NAME, autoAck, deliverCallback, (consumerTag -> {
System.out.println(consumerTag + "消费者取消消费接口的回调逻辑");
}));
}
}
|
测试步骤：
① 先启动 task2，创建 ack_queue 队列；（在 ip:15672 的 queue 列表中可以看到目前拥有的队列）
② 启动 work02，work03 接收消息（消费者）；

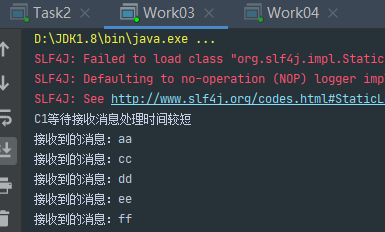

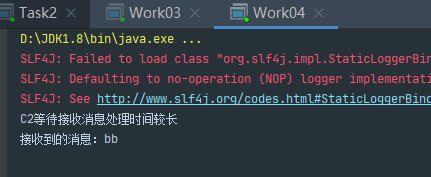

③ 发消息：在 task2 控制台输入 aa,bb,cc,dd,ee,ff，可以看到 work2 和 work3 是轮训接收消息；如果到 work03 应该接收消息 ee 时，work03 突然挂掉，此时 ee 会被转发给 work02 中的 C1，这时 C1 会接收到 ee，因此消息不会丢失，这说明了 rabbitmq 有手动应答的能力，只要没有收到消息，就不会手动应答，从而将消息放回队列。而队列又再次将消息传递给 C1 进行重新消费，从而导致 ee 并没有丢失。

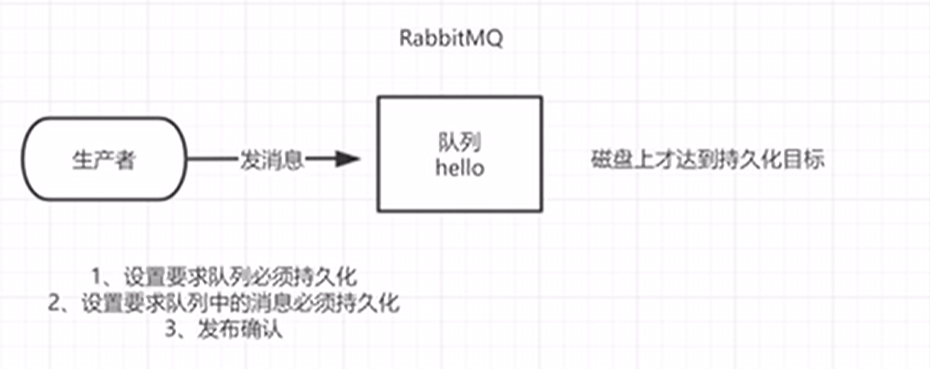

队列持久化
如果存在同名未被持久化的队列，则需要先删除原先的未被持久化的队列，再重新生成一个持久化队列。
boolean durable = true;
channel.queueDeclare(TASK_QUEUE_NAME, durable, false, false, null);
|

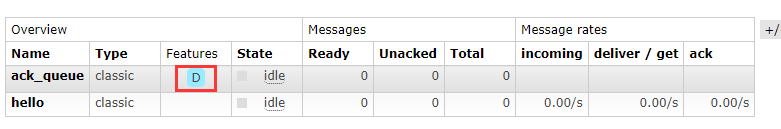

生成一个持久化队列之后，在 rabbitmq 控制台中这个队列的 features 属性会出现 D（代表持久化）。
消息持久化
channel.basicPublish("", TASK_QUEUE_NAME, MessageProperties.PERSISTENT_TEXT_PLAIN, message.getBytes());
|
不公平分发
int prefetchCount = 1;
channel.basicQos(prefetchCount);
|

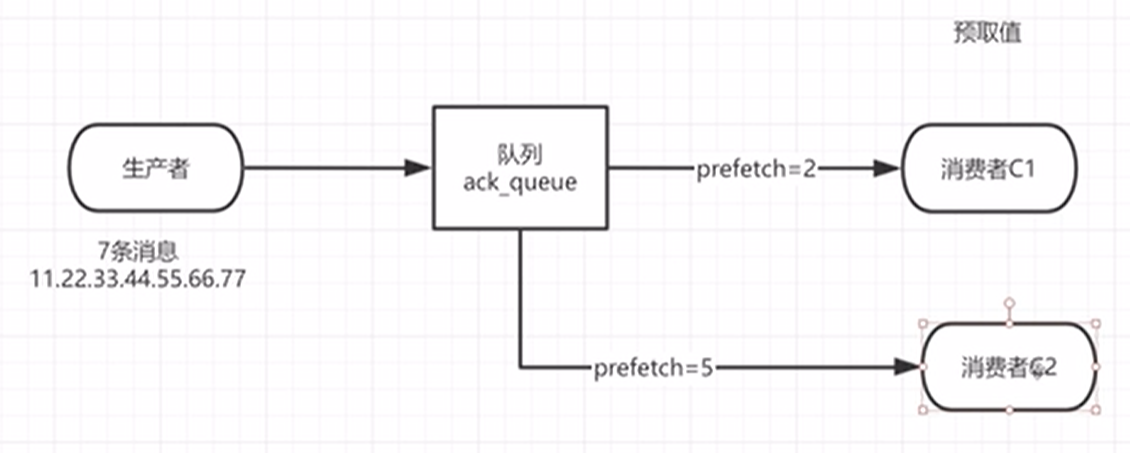

预取值
int prefetchCount = 5;
channel.basicQos(prefetchCount);
|

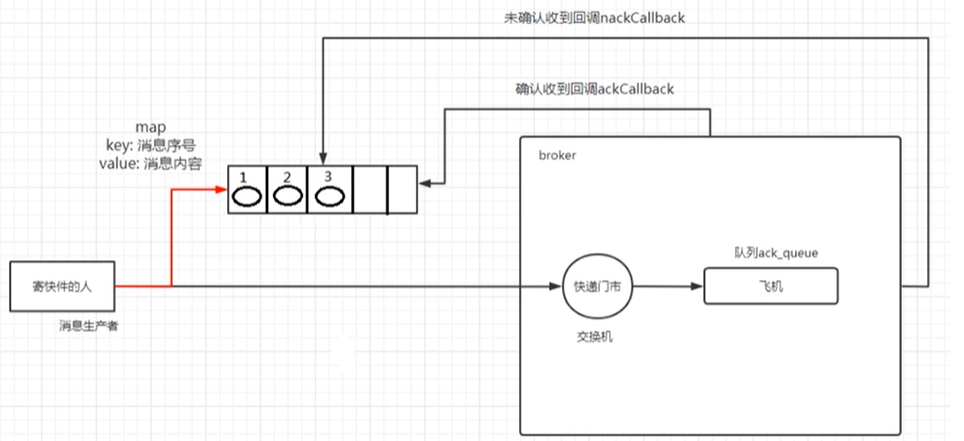

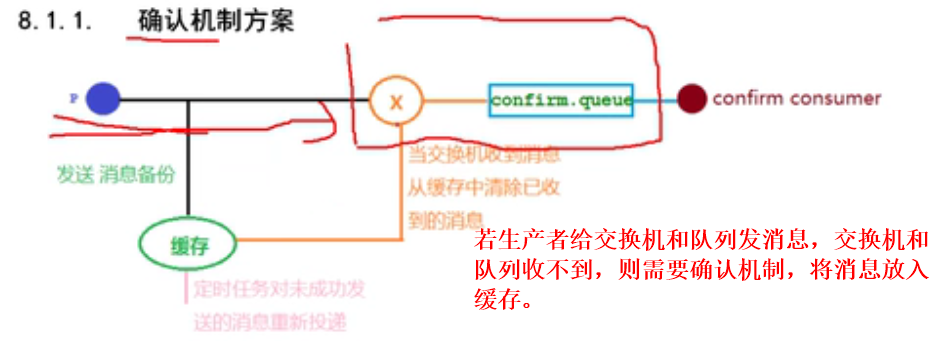

发布确认原理
在信道之后开启发布确认：

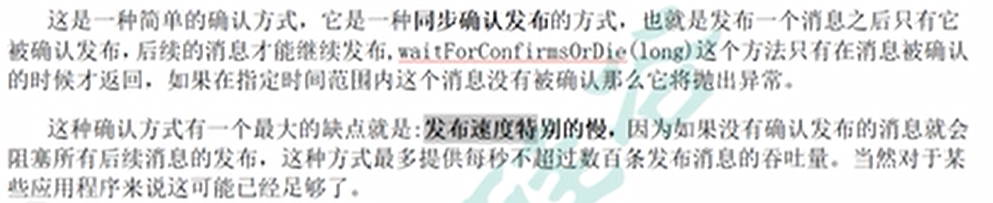

单个发布确认
package com.atguigu.rabbitmq.four;
import com.atguigu.rabbitmq.utils.RabbitMqUtils;
import com.rabbitmq.client.Channel;
import java.io.IOException;
import java.util.UUID;
import java.util.concurrent.TimeoutException;
public class ConfireMessage {
public static final int MESSAGE_COUNT = 1000;
public static void main(String[] args) throws InterruptedException, TimeoutException, IOException {
ConfireMessage.publicMessageIndividually();
}
public static void publicMessageIndividually() throws IOException, TimeoutException, InterruptedException {
Channel channel = RabbitMqUtils.getChannel();
String queueName = UUID.randomUUID().toString();
channel.queueDeclare(queueName, true, false, false, null);
channel.confirmSelect();
long begin = System.currentTimeMillis();
for (int i = 0; i < MESSAGE_COUNT; i++) {
String massage = i + "";
channel.basicPublish("", queueName, null, massage.getBytes());
boolean flag = channel.waitForConfirms();
if (flag) {
System.out.println("消息发送成功");
}
}
long end = System.currentTimeMillis();
System.out.println("发布"+MESSAGE_COUNT+"个单独确认消息，耗时"+(end - begin)+"ms");
}
}
|

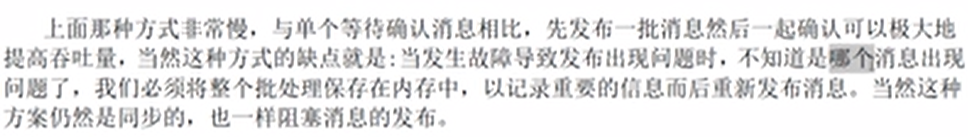

批量发布确认
public static void publicMessageBatch() throws IOException, TimeoutException, InterruptedException {
Channel channel = RabbitMqUtils.getChannel();
String queueName = UUID.randomUUID().toString();
channel.queueDeclare(queueName, true, false, false, null);
channel.confirmSelect();
long begin = System.currentTimeMillis();
int batchSize = 100;
for (int i = 0; i < MESSAGE_COUNT; i++) {
String message = i + "";
channel.basicPublish("", queueName, null, message.getBytes());
if (i % batchSize == 0) {
channel.waitForConfirms();
}
}
long end = System.currentTimeMillis();
System.out.println("发布" + MESSAGE_COUNT + "个批量确认消息，耗时" + (end - begin) + "ms");
}
|

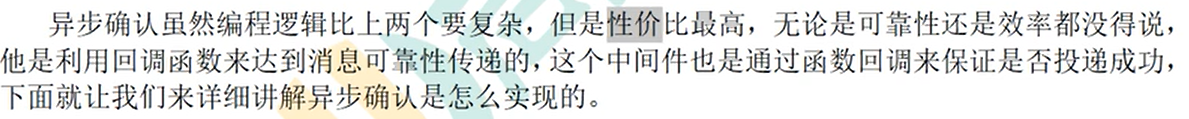

异步发布确认
public static final int MESSAGE_COUNT = 1000;
public static void main(String[] args) throws InterruptedException, TimeoutException, IOException {
ConfireMessage.publicMessageAsync();
}
public static void publicMessageAsync() throws IOException, TimeoutException {
Channel channel = RabbitMqUtils.getChannel();
String queueName = UUID.randomUUID().toString();
channel.queueDeclare(queueName, true, false, false, null);
channel.confirmSelect();
long begin = System.currentTimeMillis();
ConfirmCallback ackCallback = (deliveryTag, multiple) -> {
System.out.println("确认的消息" + deliveryTag);
};
ConfirmCallback nackCallback = (deliveryTag, multiple) -> {
System.out.println("未确认的消息" + deliveryTag);
};
channel.addConfirmListener(ackCallback, nackCallback);
for (int i = 0; i < MESSAGE_COUNT; i++) {
String massage = "消息" + i;
channel.basicPublish("", queueName, null, massage.getBytes());
}
long end = System.currentTimeMillis();
System.out.println("发布" + MESSAGE_COUNT + "个异步确认消息，耗时" + (end - begin) + "ms");
}
|
如何处理异步未确认消息
上述异步确认有两个线程：
两个线程之间交互，只能用并发链路式队列（可以在确认发布与发布线程之间进行消息传递）。
public static void publicMessageAsync() throws IOException, TimeoutException {
Channel channel = RabbitMqUtils.getChannel();
String queueName = UUID.randomUUID().toString();
channel.queueDeclare(queueName, true, false, false, null);
channel.confirmSelect();
ConcurrentSkipListMap<Long,String> outstandingConfirms = new ConcurrentSkipListMap<>();
ConfirmCallback ackCallback = (deliveryTag, multiple) -> {
if(multiple){
ConcurrentNavigableMap<Long,String> confirmed = outstandingConfirms.headMap(deliveryTag);
confirmed.clear();
}else{
outstandingConfirms.remove(deliveryTag);
}
System.out.println("确认的消息" + deliveryTag);
};
ConfirmCallback nackCallback = (deliveryTag, multiple) -> {
String message = outstandingConfirms.get(deliveryTag);
System.out.println("未确认的消息是："+message+":::::未确认的消息tag:" + deliveryTag);
};
channel.addConfirmListener(ackCallback, nackCallback);
long begin = System.currentTimeMillis();
for (int i = 0; i < MESSAGE_COUNT; i++) {
String message = "消息" + i;
outstandingConfirms.put(channel.getNextPublishSeqNo(),message);
channel.basicPublish("", queueName, null, message.getBytes());
}
long end = System.currentTimeMillis();
System.out.println("发布" + MESSAGE_COUNT + "个异步确认消息，耗时" + (end - begin) + "ms");
}
|
以上三种发布确认速度对比：
- 单独发布消息：同步等待确认，简单，但吞吐量非常有限。
- 批量发布消息：批量同步等待确认，简单，合理的吞吐量，一旦出现问题，很难推断出是哪条出现了问题
- 异步处理：最佳性能和资源利用，在出现错误的情况下，可以很好的控制，但是实现起来稍微难些。

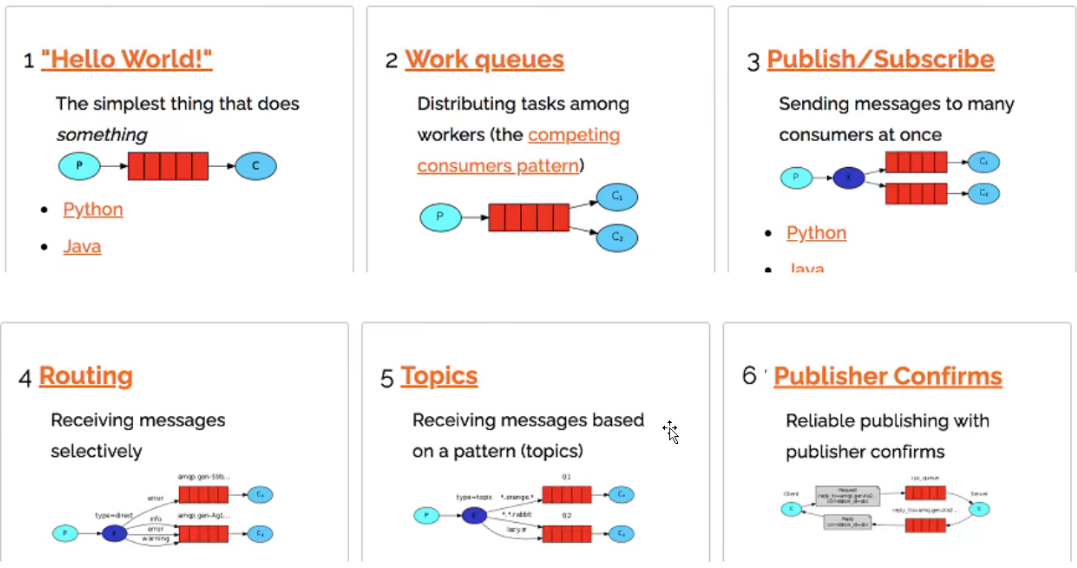

交换机
交换机的作用
交换机的类型
- 直接（direct）== 路由类型
- 主题（topic）
- 标题（headers）（企业不常用）
- 扇出（fanout）== 发布订阅类型
- 无名类型（默认类型），通常用空串进行识别
临时队列
不带有持久化，一旦断开消费者的连接，队列将被自动删除。
创建临时队列：
String queueName = channel.queueDeclare().getQueue();
|

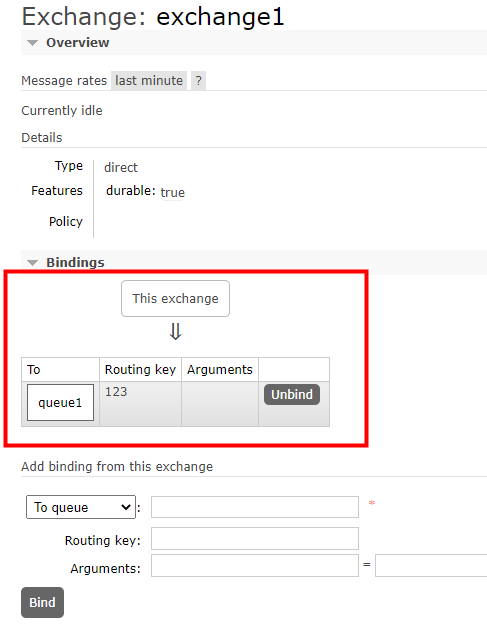

绑定
就是交换机与队列之间的捆绑关系。

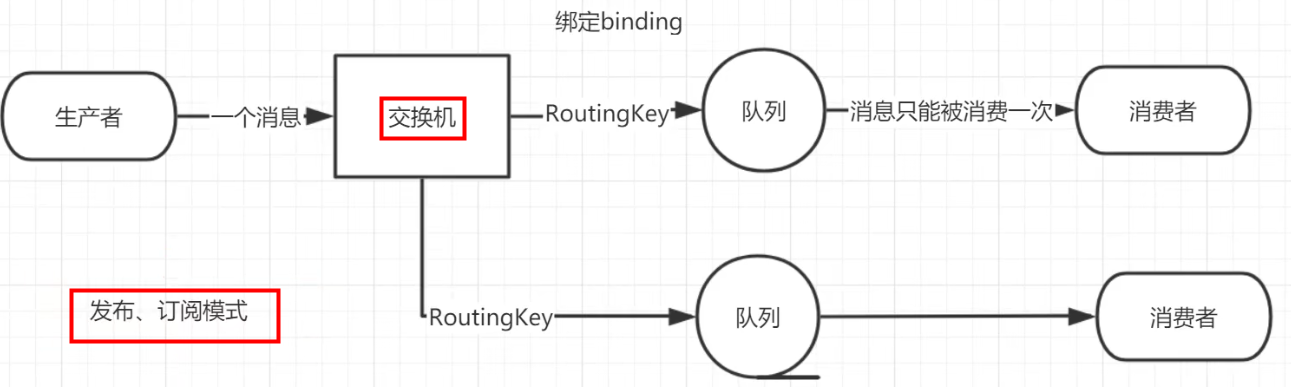

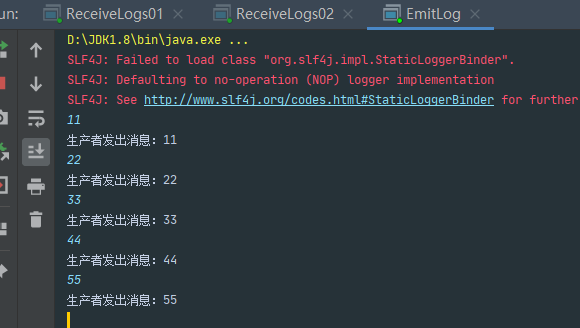

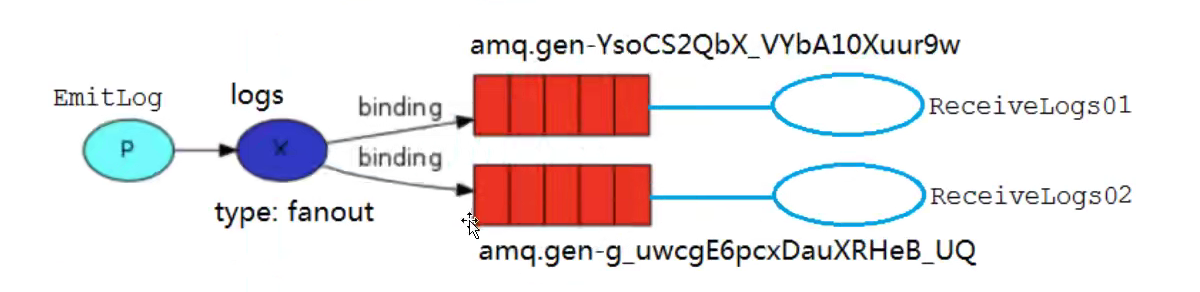

发布订阅模式（扇出模式 fanout）
类似广播，两个 routingkey 相同
- 生产者
package com.atguigu.rabbitmq.five;
import com.atguigu.rabbitmq.utils.RabbitMqUtils;
import com.rabbitmq.client.Channel;
import java.io.IOException;
import java.nio.charset.StandardCharsets;
import java.util.Scanner;
import java.util.concurrent.TimeoutException;
public class EmitLog {
public static final String EXCHANGE_NAME = "logs";
public static void main(String[] args) throws IOException, TimeoutException {
Channel channel = RabbitMqUtils.getChannel();
channel.exchangeDeclare(EXCHANGE_NAME, "fanout");
Scanner scanner = new Scanner(System.in);
while (scanner.hasNext()) {
String message = scanner.next();
channel.basicPublish(EXCHANGE_NAME, "", null, message.getBytes(StandardCharsets.UTF_8));
System.out.println("生产者发出消息：" + message);
}
}
}
|

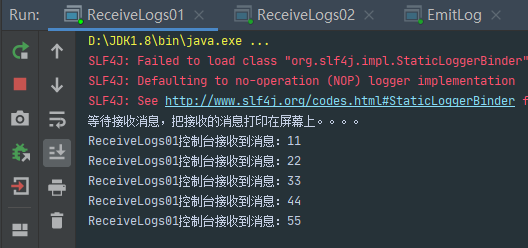

- 两个消费者
package com.atguigu.rabbitmq.five;
import com.atguigu.rabbitmq.utils.RabbitMqUtils;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.DeliverCallback;
import java.io.IOException;
import java.nio.charset.StandardCharsets;
import java.util.concurrent.TimeoutException;
public class ReceiveLogs01 {
public static final String EXCHANGE_NAME = "logs";
public static void main(String[] args) throws IOException, TimeoutException {
Channel channel = RabbitMqUtils.getChannel();
channel.exchangeDeclare(EXCHANGE_NAME, "fanout");
String queueName = channel.queueDeclare().getQueue();
channel.queueBind(queueName, EXCHANGE_NAME, "");
System.out.println("等待接收消息，把接收的消息打印在屏幕上。。。。");
DeliverCallback deliverCallback = (consumerTag, message) -> {
System.out.println("ReceiveLogs01控制台接收到消息：" + new String(message.getBody(), StandardCharsets.UTF_8));
};
channel.basicConsume(queueName, true, deliverCallback,consumerTag->{});
}
}
|
package com.atguigu.rabbitmq.five;
import com.atguigu.rabbitmq.utils.RabbitMqUtils;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.DeliverCallback;
import java.io.IOException;
import java.nio.charset.StandardCharsets;
import java.util.concurrent.TimeoutException;

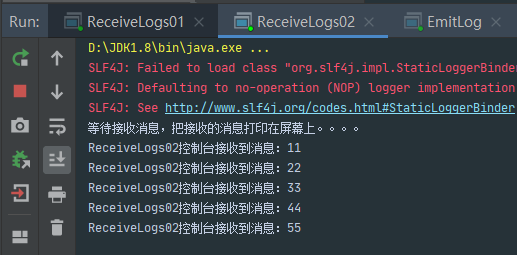

public class ReceiveLogs02 {
public static final String EXCHANGE_NAME = "logs";
public static void main(String[] args) throws IOException, TimeoutException {
Channel channel = RabbitMqUtils.getChannel();
channel.exchangeDeclare(EXCHANGE_NAME, "fanout");
String queueName = channel.queueDeclare().getQueue();
channel.queueBind(queueName, EXCHANGE_NAME, "");
System.out.println("等待接收消息，把接收的消息打印在屏幕上。。。。");
DeliverCallback deliverCallback = (consumerTag, message) -> {
System.out.println("ReceiveLogs02控制台接收到消息：" + new String(message.getBody(), StandardCharsets.UTF_8));
};
channel.basicConsume(queueName, true, deliverCallback,consumerTag->{});
}
}
|

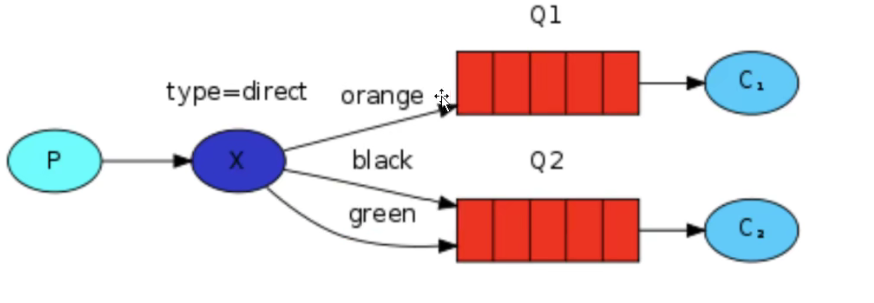

直接交换机（路由模式 direct）
两个 routingkey 不相同
可以多重绑定。
生产者发消息给队列，直接交换机通过不同 routingkey 路由到相应的队列，然后消费者接收指定日志。
- 发消息
package com.atguigu.rabbitmq.six;
import com.atguigu.rabbitmq.utils.RabbitMqUtils;
import com.rabbitmq.client.Channel;
import java.io.IOException;
import java.nio.charset.StandardCharsets;
import java.util.Scanner;
import java.util.concurrent.TimeoutException;

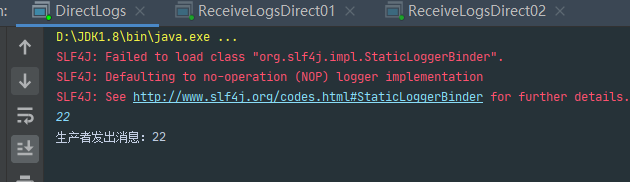

public class DirectLogs {
public static final String EXCHANGE_NAME = "direct_logs";
public static void main(String[] args) throws IOException, TimeoutException {
Channel channel = RabbitMqUtils.getChannel();
Scanner scanner = new Scanner(System.in);
while (scanner.hasNext()) {
String message = scanner.next();
channel.basicPublish(EXCHANGE_NAME, "error", null, message.getBytes(StandardCharsets.UTF_8));
System.out.println("生产者发出消息：" + message);
}
}
}
|
- 接收消息
package com.atguigu.rabbitmq.six;
import com.atguigu.rabbitmq.utils.RabbitMqUtils;
import com.rabbitmq.client.BuiltinExchangeType;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.DeliverCallback;
import java.io.IOException;
import java.nio.charset.StandardCharsets;
import java.util.concurrent.TimeoutException;
public class ReceiveLogsDirect01 {
public static final String EXCHANGE_NAME = "direct_logs";
public static void main(String[] args) throws IOException, TimeoutException {
Channel channel = RabbitMqUtils.getChannel();
channel.exchangeDeclare(EXCHANGE_NAME, BuiltinExchangeType.DIRECT);
channel.queueDeclare("console",false,false,false,null);
channel.queueBind("console",EXCHANGE_NAME,"info");
channel.queueBind("console",EXCHANGE_NAME,"warning");
DeliverCallback deliverCallback = (consumerTag, message) -> {
System.out.println("ReceiveLogs01控制台接收到消息：" + new String(message.getBody(), StandardCharsets.UTF_8));
};
channel.basicConsume("console", true, deliverCallback,consumerTag->{});
}
}
|
package com.atguigu.rabbitmq.six;
import com.atguigu.rabbitmq.utils.RabbitMqUtils;
import com.rabbitmq.client.BuiltinExchangeType;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.DeliverCallback;
import java.io.IOException;
import java.nio.charset.StandardCharsets;
import java.util.concurrent.TimeoutException;

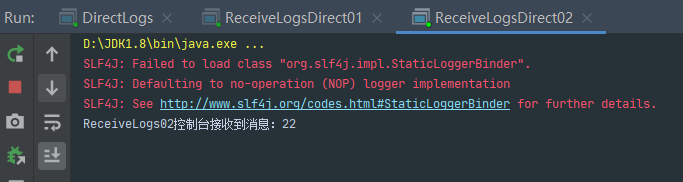

public class ReceiveLogsDirect02 {
public static final String EXCHANGE_NAME = "direct_logs";
public static void main(String[] args) throws IOException, TimeoutException {
Channel channel = RabbitMqUtils.getChannel();
channel.exchangeDeclare(EXCHANGE_NAME, BuiltinExchangeType.DIRECT);
channel.queueDeclare("disk",false,false,false,null);
channel.queueBind("disk",EXCHANGE_NAME,"error");
DeliverCallback deliverCallback = (consumerTag, message) -> {
System.out.println("ReceiveLogs02控制台接收到消息：" + new String(message.getBody(), StandardCharsets.UTF_8));
};
channel.basicConsume("disk", true, deliverCallback,consumerTag->{});
}
}
|

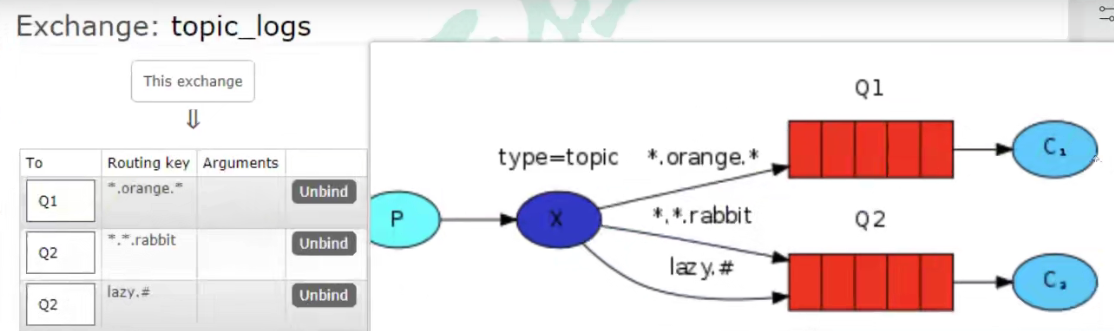

主题交换机（Topic）

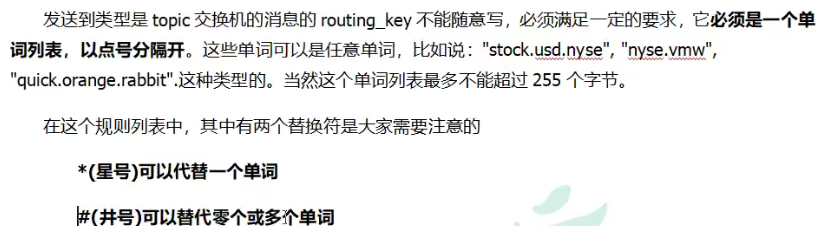

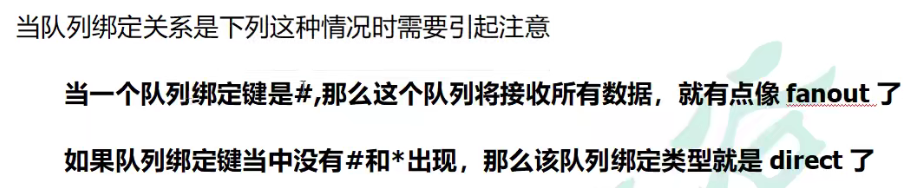

规范：

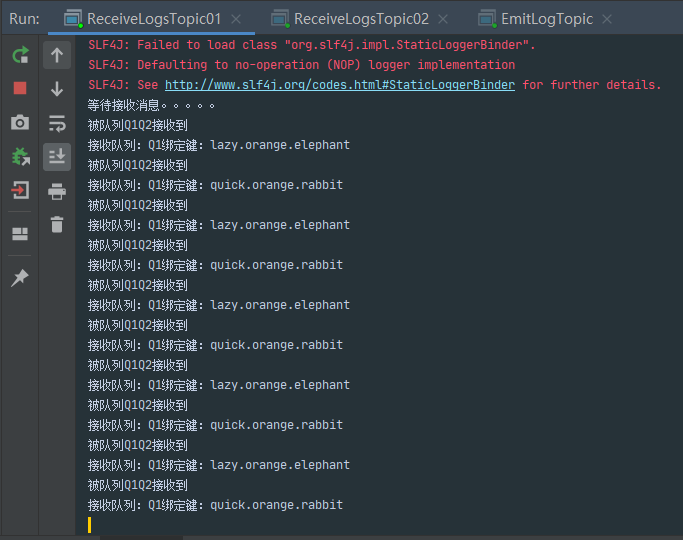

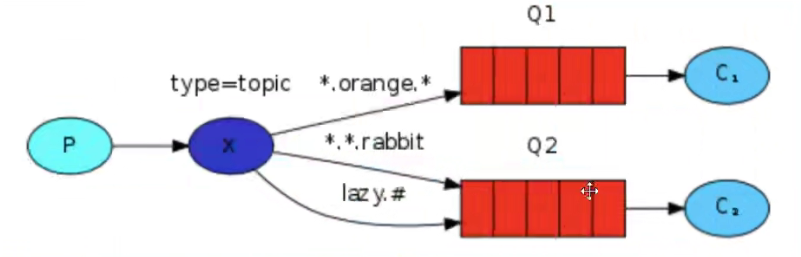

主题交换机（实战）
- 消费者
package com.atguigu.rabbitmq.seven;
import com.atguigu.rabbitmq.utils.RabbitMqUtils;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.DeliverCallback;
import java.io.IOException;
import java.nio.charset.StandardCharsets;
import java.util.concurrent.TimeoutException;
public class ReceiveLogsTopic01 {
public static final String EXCHANGE_NAME = "topic_logs";
public static void main(String[] args) throws IOException, TimeoutException {
Channel channel = RabbitMqUtils.getChannel();
channel.exchangeDeclare(EXCHANGE_NAME, "topic");
String queueName = "Q1";
channel.queueDeclare(queueName, false, false, false, null);
channel.queueBind(queueName, EXCHANGE_NAME, "*.orange.*");
System.out.println("等待接收消息。。。。。");
DeliverCallback deliverCallback = (consumerTag, message) -> {
System.out.println(new String(message.getBody(), StandardCharsets.UTF_8));
System.out.println("接收队列：" + queueName + "绑定键：" + message.getEnvelope().getRoutingKey());
};
channel.basicConsume(queueName, true, deliverCallback, consumerTag -> {
});
}
}
|
package com.atguigu.rabbitmq.seven;
import com.atguigu.rabbitmq.utils.RabbitMqUtils;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.DeliverCallback;
import java.io.IOException;
import java.nio.charset.StandardCharsets;
import java.util.concurrent.TimeoutException;
public class ReceiveLogsTopic02 {
public static final String EXCHANGE_NAME = "topic_logs";
public static void main(String[] args) throws IOException, TimeoutException {
Channel channel = RabbitMqUtils.getChannel();
channel.exchangeDeclare(EXCHANGE_NAME, "topic");
String queueName = "Q2";
channel.queueDeclare(queueName, false, false, false, null);
channel.queueBind(queueName, EXCHANGE_NAME, "*.*.rabbit");
channel.queueBind(queueName, EXCHANGE_NAME, "lazy.#");
System.out.println("等待接收消息。。。。。");
DeliverCallback deliverCallback = (consumerTag, message) -> {
System.out.println(new String(message.getBody(), StandardCharsets.UTF_8));
System.out.println("接收队列：" + queueName + "绑定键：" + message.getEnvelope().getRoutingKey());
};
channel.basicConsume(queueName, true, deliverCallback, consumerTag -> {
});
}
}
|

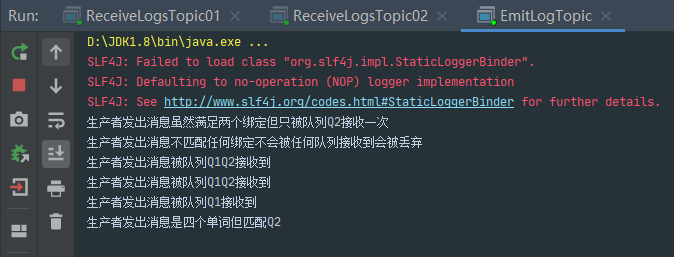

- 生产者
package com.atguigu.rabbitmq.seven;
import com.atguigu.rabbitmq.utils.RabbitMqUtils;
import com.rabbitmq.client.Channel;
import java.io.IOException;
import java.nio.charset.StandardCharsets;
import java.security.spec.ECField;
import java.util.HashMap;
import java.util.Map;
import java.util.concurrent.TimeoutException;
public class EmitLogTopic {
public static final String EXCHANGE_NAME = "topic_logs";
public static void main(String[] args) throws IOException, TimeoutException {
Channel channel = RabbitMqUtils.getChannel();
Map<String, String> bindingKeyMap = new HashMap<>();

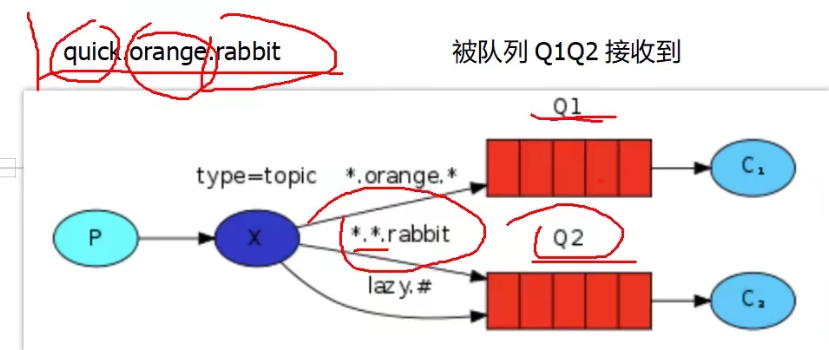

bindingKeyMap.put("quick.orange.rabbit", "被队列Q1Q2接收到");
bindingKeyMap.put("lazy.orange.elephant", "被队列Q1Q2接收到");
bindingKeyMap.put("lazy.pink.rabbit", "被队列Q1接收到");
bindingKeyMap.put("quick.brown.fox", "被队列Q2接收到");
bindingKeyMap.put("quick.orange.male.rabbit", "虽然满足两个绑定但只被队列Q2接收一次");
bindingKeyMap.put("quick.brown.fox", "不匹配任何绑定不会被任何队列接收到会被丢弃");
bindingKeyMap.put("lazy.orange.male.rabbit", "是四个单词不匹配任何绑定定会丢弃");
bindingKeyMap.put("lazy.orange.male.rabbit", "是四个单词但匹配Q2");
for (Map.Entry<String, String> bindingKeyEntry : bindingKeyMap.entrySet()) {
String routingKey = bindingKeyEntry.getKey();
String message = bindingKeyEntry.getValue();
channel.basicPublish(EXCHANGE_NAME, routingKey, null, message.getBytes(StandardCharsets.UTF_8));
System.out.println("生产者发出消息" + message);
}
}
}
|
先启动消费者，再启动生产者。

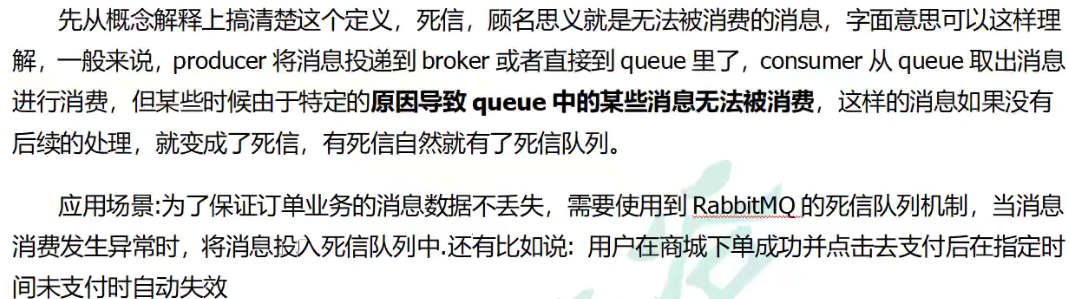

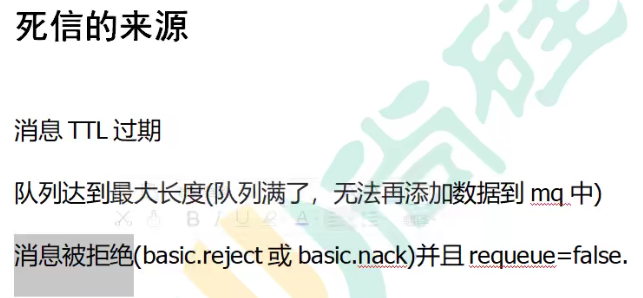

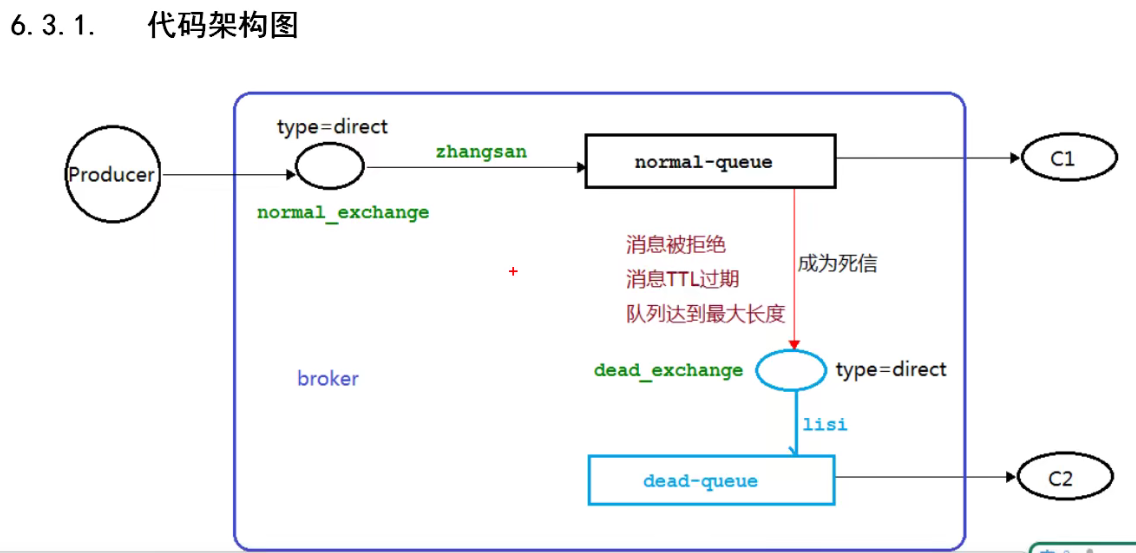

死信队列
package com.atguigu.rabbitmq.eight;
import com.atguigu.rabbitmq.utils.RabbitMqUtils;
import com.rabbitmq.client.BuiltinExchangeType;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.DeliverCallback;
import java.io.IOException;
import java.nio.charset.StandardCharsets;
import java.util.HashMap;
import java.util.Map;
import java.util.concurrent.TimeoutException;
public class Consumer01 {
public static final String NORMAL_EXCHANGE = "normal_exchange";
public static final String DEAD_EXCHANGE = "dead_exchange";
public static final String NORMAL_QUEUE = "normal_queue";
public static final String DEAD_QUEUE = "dead_queue";
public static void main(String[] args) throws IOException, TimeoutException {
Channel channel = RabbitMqUtils.getChannel();
channel.exchangeDeclare(NORMAL_EXCHANGE, BuiltinExchangeType.DIRECT);
channel.exchangeDeclare(DEAD_EXCHANGE, BuiltinExchangeType.DIRECT);
Map<String, Object> arguments = new HashMap<>();
arguments.put("x-dead-letter-exchange", DEAD_EXCHANGE);
arguments.put("x-dead-letter-routing-key", "lisi");
channel.queueDeclare(NORMAL_QUEUE, false, false, false, arguments);
channel.queueDeclare(DEAD_QUEUE, false, false, false, null);
channel.queueBind(NORMAL_QUEUE, NORMAL_EXCHANGE, "zhangsan");
channel.queueBind(DEAD_QUEUE, DEAD_EXCHANGE, "lisi");
System.out.println("等待接收消息.........");
DeliverCallback deliverCallback = (consumerTag, message) -> {
String msg = new String(message.getBody(), StandardCharsets.UTF_8);
if (msg.equals("info5")) {
System.out.println("此消息被C1拒绝的" + msg);
channel.basicReject(message.getEnvelope().getDeliveryTag(), false);
} else {
System.out.println("Consumer01接收的消息" + msg);
channel.basicAck(message.getEnvelope().getDeliveryTag(), false);
}
};
channel.basicConsume(NORMAL_QUEUE, false, deliverCallback, consumerTag -> {
});
}
}
|
package com.atguigu.rabbitmq.eight;
import com.atguigu.rabbitmq.utils.RabbitMqUtils;
import com.rabbitmq.client.BuiltinExchangeType;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.DeliverCallback;
import java.io.IOException;
import java.nio.charset.StandardCharsets;
import java.util.HashMap;
import java.util.Map;
import java.util.concurrent.TimeoutException;
public class Consumer02 {
public static final String DEAD_QUEUE = "dead_queue";
public static void main(String[] args) throws IOException, TimeoutException {
Channel channel = RabbitMqUtils.getChannel();
System.out.println("等待接收消息.........");
DeliverCallback deliverCallback = (consumerTag, message) -> {
System.out.println("Consumer02接收的消息" + new String(message.getBody(), StandardCharsets.UTF_8));
};
channel.basicConsume(DEAD_QUEUE, false, deliverCallback, consumerTag -> {
});
}
}
|
package com.atguigu.rabbitmq.eight;
import com.atguigu.rabbitmq.utils.RabbitMqUtils;
import com.rabbitmq.client.AMQP;
import com.rabbitmq.client.Channel;
import java.io.IOException;
import java.util.concurrent.TimeoutException;
public class Producer {
public static final String NORMAL_EXCHANGE = "normal_exchange";
public static void main(String[] args) throws IOException, TimeoutException {
Channel channel = RabbitMqUtils.getChannel();
AMQP.BasicProperties properties = new AMQP.BasicProperties().builder().expiration("10000").build();
for (int i = 1; i < 11; i++) {
String message = "info" + i;
channel.basicPublish(NORMAL_EXCHANGE, "zhangsan", properties, message.getBytes());
}
}
}
|
测试步骤：

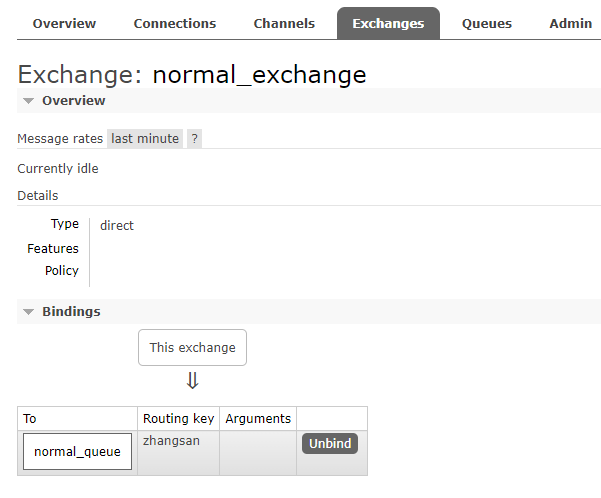

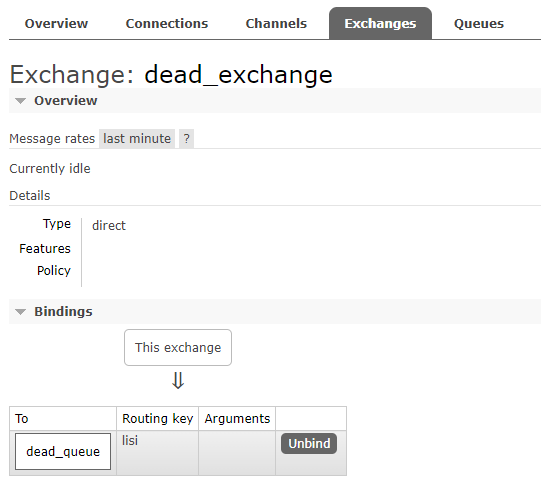

- 运行消费者：会发现普通和死信交换机已经绑定各自的队列。
- 测试队列达到最大长度，关闭消费者 1 和 2，开启生产者：消息会积压在队列中，消费者 1 所在的普通队列消息限制有 6 条，剩下的 4 条会进入消费者 2 所在的死信队列。如下图所示：
- 取消普通队列的最大长度限制，测试消息 ttl 过期：关闭消费者 1 和 2，开启生产者发送消息。（消息会因为没人接收，会在 ttl 时间内积压在普通队列中， ttl 过期后，消息会进入死信队列中。）
生产者：
package com.atguigu.rabbitmq.eight;
import com.atguigu.rabbitmq.utils.RabbitMqUtils;
import com.rabbitmq.client.AMQP;
import com.rabbitmq.client.Channel;
import java.io.IOException;
import java.util.concurrent.TimeoutException;
public class Producer {
public static final String NORMAL_EXCHANGE = "normal_exchange";
public static void main(String[] args) throws IOException, TimeoutException {
Channel channel = RabbitMqUtils.getChannel();
AMQP.BasicProperties properties = new AMQP.BasicProperties().builder().expiration("10000").build();
for (int i = 1; i < 11; i++) {
String message = "info" + i;
channel.basicPublish(NORMAL_EXCHANGE, "zhangsan", properties, message.getBytes());
}
}
}
|

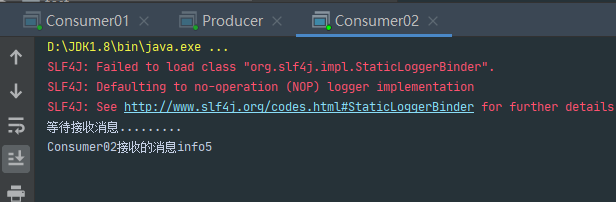

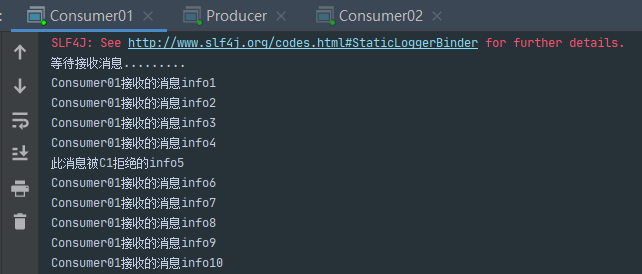

- 测试消息被拒：
开启消费者 1 和 2，再开启生产者。

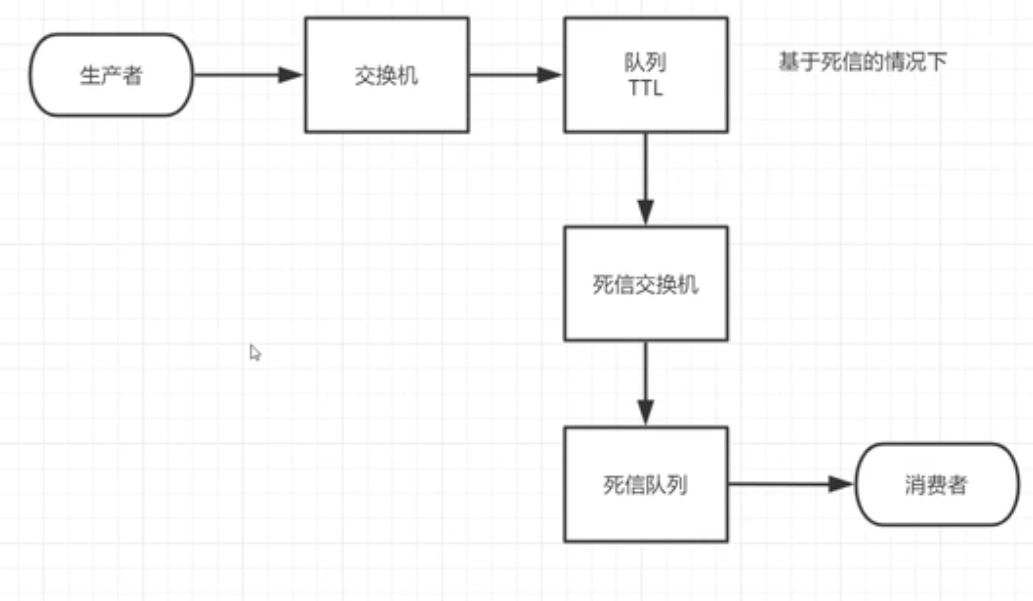

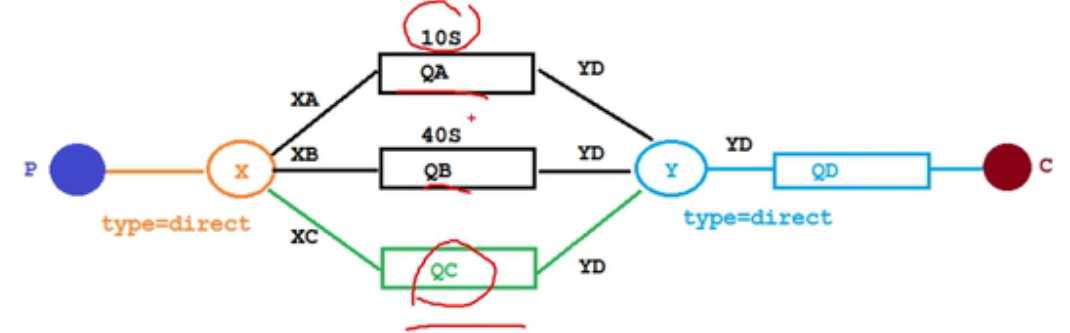

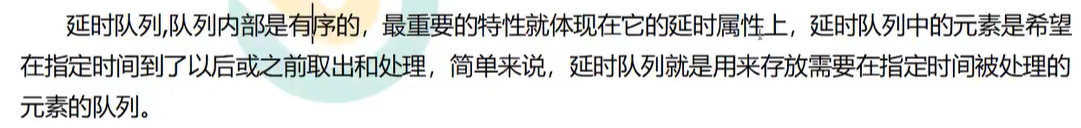

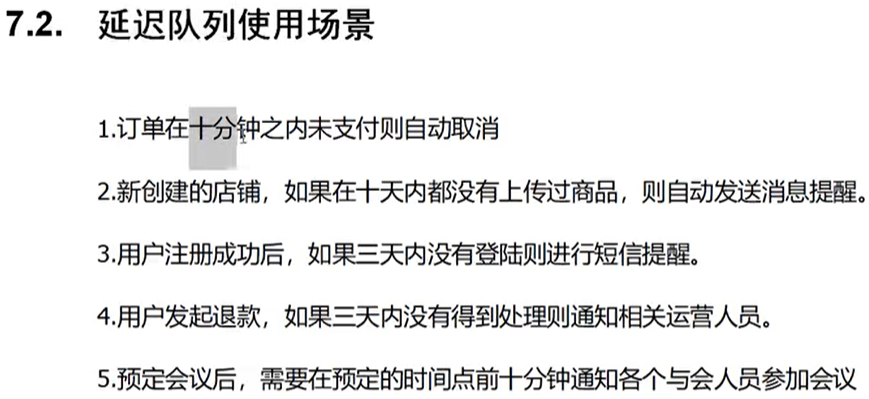

延迟队列（基于死信队列）
整合 SpringBoot
实现延迟队列：
- 依赖：
<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>2.6.1</version>
<relativePath/> <!-- lookup parent from repository -->
</parent>
<groupId>com.atguigu.rabbitmq</groupId>
<artifactId>springboot-rabbitmq</artifactId>
<version>0.0.1-SNAPSHOT</version>
<name>springboot-rabbitmq</name>
<description>Demo project for Spring Boot</description>
<properties>
<java.version>1.8</java.version>
</properties>
<dependencies>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-test</artifactId>
<scope>test</scope>
</dependency>
<!-- https:
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-amqp</artifactId>
<version>2.6.1</version>
</dependency>
<!-- https:
<!--web服务器，可以自启动-->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
<version>2.6.1</version>
</dependency>
<!--快速进行json转换-->
<!-- https:
<dependency>
<groupId>com.alibaba</groupId>
<artifactId>fastjson</artifactId>
<version>1.2.78</version>
</dependency>
<!-- https:
<dependency>
<groupId>io.springfox</groupId>
<artifactId>springfox-swagger2</artifactId>
<version>3.0.0</version>
</dependency>
<!-- https:
<dependency>
<groupId>io.springfox</groupId>
<artifactId>springfox-swagger-ui</artifactId>
<version>3.0.0</version>
</dependency>
<!-- https:
<dependency>
<groupId>org.springframework.amqp</groupId>
<artifactId>spring-rabbit-test</artifactId>
<version>2.4.0</version>
<scope>test</scope>
</dependency>
<!-- https:
<dependency>
<groupId>org.projectlombok</groupId>
<artifactId>lombok</artifactId>
<version>1.18.22</version>
<scope>provided</scope>
</dependency>
</dependencies>
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
</plugins>
</build>
</project>
|
- yml 配置文件：
spring:
rabbitmq:
host: 59.110.171.189
port: 5672
username: admin
password: 123
|
- swagger 配置类：
package com.atguigu.rabbitmq.springbootrabbitmq.config;
import org.springframework.context.annotation.Bean;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
public class SwaggerConfig {
@Bean
public Docket webApiConfig() {
return new Docket(DocumentationType.SWAGGER_2)
.groupName("webApi")
.apiInfo(webApiInfo())
.select()
.build();
}
private ApiInfo webApiInfo() {
return new ApiInfoBuilder()
.title("rabbitmq 接口文档")
.description(" 本文档描述了 rabbitmq 微服务接口定义")
.version("1.0")
.contact(new Contact("enjoy6288", "http://atguigu.com",
"1846015350@qq.com"))
.build();
}
}
|

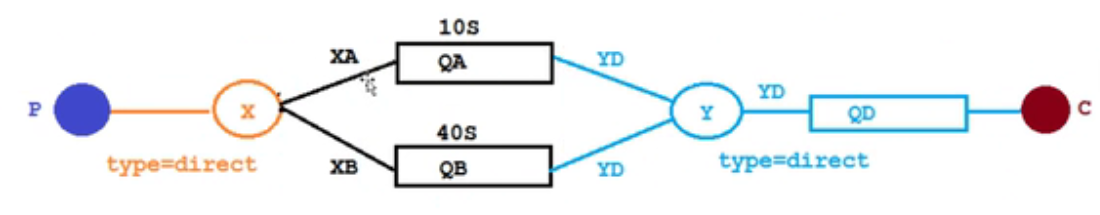

- 声明队列配置文件：
package com.atguigu.rabbitmq.springbootrabbitmq.config;
import org.springframework.amqp.core.*;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import java.util.HashMap;
import java.util.Map;
@Configuration
public class TtlQueueConfig {
public static final String X_EXCHANGE = "X";
public static final String Y_DEAD_LETTER_EXCHANGE = "Y";
public static final String QUEUE_A = "QA";
public static final String QUEUE_B = "QB";
public static final String DEAD_LETTER_QUEUE = "QD";
@Bean("xExchange")
public DirectExchange xExchange() {
return new DirectExchange(X_EXCHANGE);
}
@Bean("yExchange")
public DirectExchange yExchange() {
return new DirectExchange(Y_DEAD_LETTER_EXCHANGE);
}
@Bean("queueA")
public Queue queueA() {
Map<String, Object> arguments = new HashMap<>(3);
arguments.put("x-dead-letter-exchange", Y_DEAD_LETTER_EXCHANGE);
arguments.put("x-dead-letter-routing-key", "YD");
arguments.put("x-message-ttl", 10000);
return QueueBuilder.durable(QUEUE_A).withArguments(arguments).build();
}
@Bean("queueB")
public Queue queueB() {
Map<String, Object> arguments = new HashMap<>(3);
arguments.put("x-dead-letter-exchange", Y_DEAD_LETTER_EXCHANGE);
arguments.put("x-dead-letter-routing-key", "YD");
arguments.put("x-message-ttl", 40000);
return QueueBuilder.durable(QUEUE_B).withArguments(arguments).build();
}
@Bean("queueD")
public Queue queueD() {
return QueueBuilder.durable(DEAD_LETTER_QUEUE).build();
}
@Bean
public Binding queueABindingX(@Qualifier("queueA") Queue queueA, @Qualifier("xExchange") DirectExchange xExchange) {
return BindingBuilder.bind(queueA).to(xExchange).with("XA");
}
@Bean
public Binding queueBBindingX(@Qualifier("queueB") Queue queueB, @Qualifier("xExchange") DirectExchange xExchange) {
return BindingBuilder.bind(queueB).to(xExchange).with("XB");
}
@Bean
public Binding queueDBindingY(@Qualifier("queueD") Queue queueD, @Qualifier("yExchange") DirectExchange yExchange) {
return BindingBuilder.bind(queueD).to(yExchange).with("YD");
}
}
|
- 消费者：接收消息
package com.atguigu.rabbitmq.springbootrabbitmq.consumer;
import com.rabbitmq.client.Channel;
import lombok.extern.slf4j.Slf4j;
import org.springframework.amqp.core.Message;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.stereotype.Component;
import java.util.Date;
@Slf4j
@Component
public class DeadLetterQueueConsumer {
@RabbitListener(queues = "QD")
public void receiveD(Message message, Channel channel) {
String msg = new String(message.getBody());
log.info("当前时间：{}，收到死信队列的消息：{}", new Date().toString(), msg);
}
}
|
- 发送消息：Controller
package com.atguigu.rabbitmq.springbootrabbitmq.controller;
import io.swagger.annotations.ApiModelProperty;
import lombok.extern.slf4j.Slf4j;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
import java.util.Date;
@Slf4j
@RestController
@RequestMapping("/ttl")
public class SendMsgController {
@Autowired
private RabbitTemplate rabbitTemplate;
@GetMapping("/sendMsg/{message}")
public void sendMsg(@PathVariable String message) {
log.info("当前时间：{}，发送一条消息给两个ttl队列:{}", new Date().toString(), message);
rabbitTemplate.convertAndSend("X", "XA", "消息来自ttl为10s的队列" + message);
rabbitTemplate.convertAndSend("X", "XB", "消息来自ttl为40s的队列" + message);
}
}
|
访问：http://localhost:8080/ttl/sendMsg/嘻嘻嘻

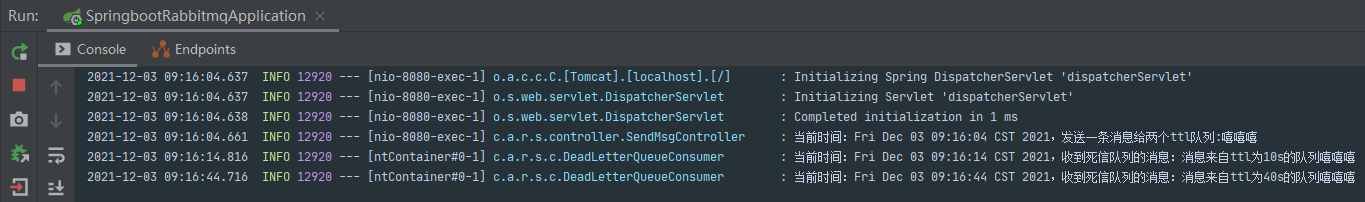

控制台打印结果：
延迟队列优化：
增加一个 QC 普通队列声明后并绑定交换机 XC。
队列配置 中添加：
public static final String QUEUE_C = "QC";
@Bean("queueC")
public Queue queueC() {
Map<String, Object> arguments = new HashMap<>(2);
arguments.put("x-dead-letter-exchange", Y_DEAD_LETTER_EXCHANGE);
arguments.put("x-dead-letter-routing-key", "YD");
return QueueBuilder.durable(QUEUE_C).withArguments(arguments).build();
}
@Bean
public Binding queueCBindingX(@Qualifier("queueC") Queue queueC,
@Qualifier("xExchange") DirectExchange xExchange) {
return BindingBuilder.bind(queueC).to(xExchange).with("XC");
}
|
添加 Controller 发消息控制器：
@GetMapping("/sendExpireMsg/{message}/{ttlTime}")
public void sendMsg(@PathVariable String message, @PathVariable String ttlTime) {
log.info("当前时间：{}，发送一条时长{}毫秒，ttl信息给队列QC:{}", new Date().toString(), ttlTime, message);
rabbitTemplate.convertAndSend("X", "XC", message, msg -> {
msg.getMessageProperties().setExpiration(ttlTime);
return msg;
});
}
|
测试：
- http://localhost:8080/ttl/sendExpireMsg/你好 1/20000
- http://localhost:8080/ttl/sendExpireMsg/你好 2/2000

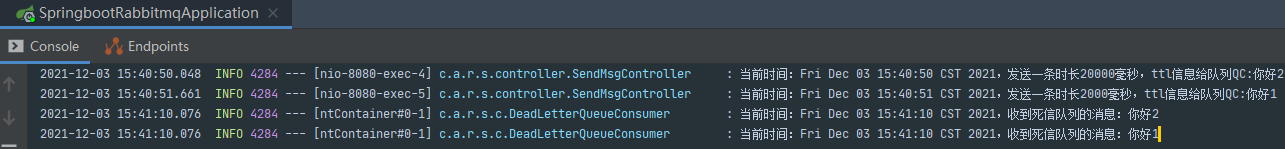

结果：
延迟队列（基于插件）
进入 rabbitmq 安装目录下的 plugins 目录 ，cd /usr/lib/rabbitmq/lib/rabbitmq_server-3.8.8/plugins
执行命令让该插件生效：rabbitmq-plugins enable rabbitmq_delayed_message_exchange
然后重启 rabbitmq：systemctl restart rabbitmq-server

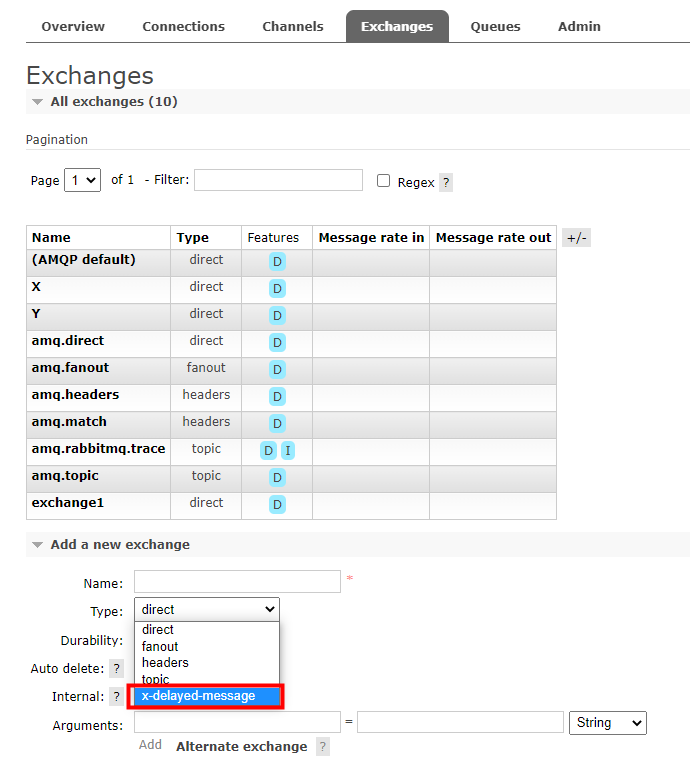

会发现交换机多了一个新类型，意味着延迟消息将由交换机来完成，而不是队列。
原来的情况：基于死信

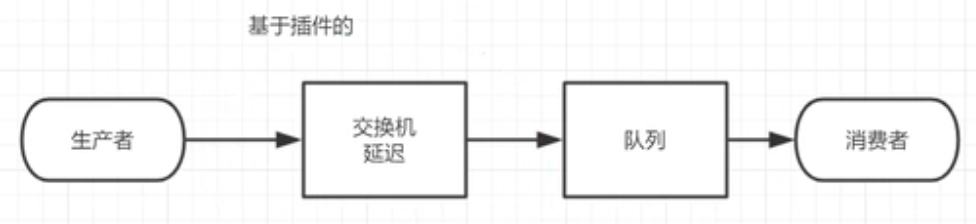

现在：基于延迟插件

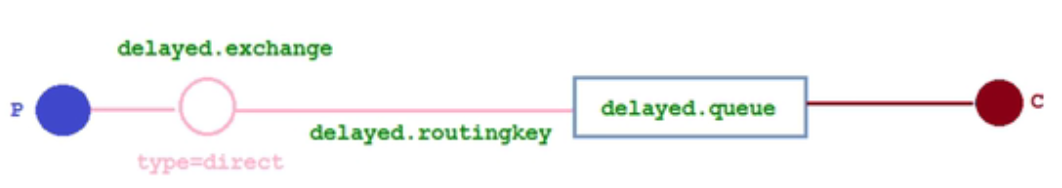

代码架构：
- 配置类
package com.atguigu.rabbitmq.springbootrabbitmq.config;
import org.springframework.amqp.core.*;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import java.util.HashMap;
import java.util.Map;
@Configuration
public class DelayedQueueConfig {
public static final String DELAYED_QUEUE_NAME = "delayed.name";
public static final String DELAYED_EXCHANGE_NAME = "delayed.exchange";
public static final String DELAYED_ROUTING_KEY = "delayed.routingkey";
@Bean
public Queue delayedQueue() {
return QueueBuilder.durable(DELAYED_QUEUE_NAME).build();
}
@Bean
public CustomExchange delayedExchange() {
Map<String, Object> arguments = new HashMap<>();
arguments.put("x-delayed-type", "direct");
return new CustomExchange(DELAYED_EXCHANGE_NAME, "x-delayed-message", true, false, arguments);
}
@Bean
public Binding delayedQueueBindingDelayedExchange(@Qualifier("delayedQueue") Queue delayedQueue,
@Qualifier("delayedExchange") CustomExchange delayedExchange) {
return BindingBuilder.bind(delayedQueue).to(delayedExchange).with(DELAYED_ROUTING_KEY).noargs();
}
}
|
- Controller 生产者：
@GetMapping("/sendDelayMsg/{message}/{delayTime}")
public void sendMsg(@PathVariable String message, @PathVariable Integer delayTime) {
log.info("当前时间:{},发送一条时长{}毫秒信息给延迟队列delayed.queue:{}", new Date().toString(), delayTime, message);
rabbitTemplate.convertAndSend(DelayedQueueConfig.DELAYED_EXCHANGE_NAME, DelayedQueueConfig.DELAYED_ROUTING_KEY, message, msg -> {
msg.getMessageProperties().setDelay(delayTime);
return msg;
});
}
|
- 消费者：
package com.atguigu.rabbitmq.springbootrabbitmq.consumer;
import com.atguigu.rabbitmq.springbootrabbitmq.config.DelayedQueueConfig;
import lombok.extern.slf4j.Slf4j;
import org.springframework.amqp.core.Message;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;
import java.util.Date;
@Slf4j
@Component
public class DelayQueueConsumer {
@RabbitListener(queues = DelayedQueueConfig.DELAYED_QUEUE_NAME)
public void receiveDelayQueue(Message message) {
String msg = new String(message.getBody());
log.info("当前时间:{},收到延迟队列的消息：{}", new Date().toString(), msg);
}
}
|

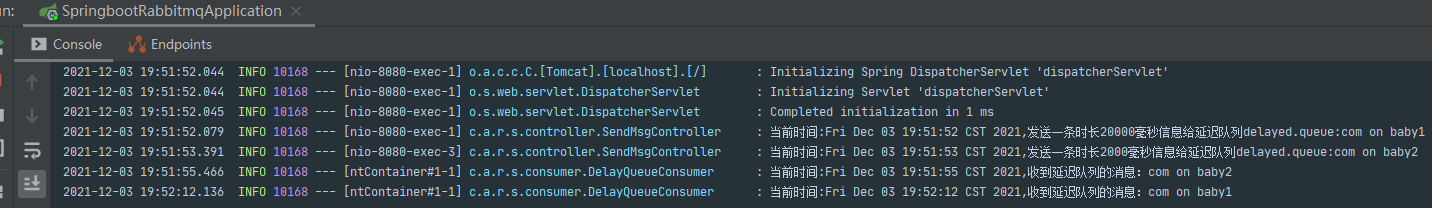

测试：
发起请求：http://localhost:8080/ttl/sendDelayMsg/com on baby1/20000
http://localhost:8080/ttl/sendDelayMsg/com on baby2/2000
发布确认高级

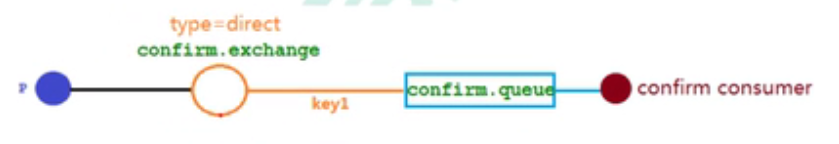

回调接口 : (若交换机收不到消息)
- 配置类
package com.atguigu.rabbitmq.springbootrabbitmq.config;
import org.springframework.amqp.core.*;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
@Configuration
public class ConfirmConfig {
public static final String CONFIRM_EXCHANGE_NAME = "confirm_exchange";
public static final String CONFIRM_QUEUE_NAME = "confirm_queue";
public static final String CONFIRM_ROUTING_KEY = "key1";
@Bean
public DirectExchange confirmExchange() {
return new DirectExchange(CONFIRM_EXCHANGE_NAME);
}
@Bean
public Queue confirmQueue() {
return QueueBuilder.durable(CONFIRM_QUEUE_NAME).build();
}
@Bean
public Binding queueBindingExchange(@Qualifier("confirmQueue") Queue confirmQueue,
@Qualifier("confirmExchange") DirectExchange confirmExchange) {
return BindingBuilder.bind(confirmQueue).to(confirmExchange).with(CONFIRM_ROUTING_KEY);
}
}
|
- 生产者：发消息
package com.atguigu.rabbitmq.springbootrabbitmq.controller;
import com.atguigu.rabbitmq.springbootrabbitmq.config.ConfirmConfig;
import lombok.extern.slf4j.Slf4j;
import org.springframework.amqp.rabbit.connection.CorrelationData;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
@Slf4j
@RestController
@RequestMapping("/confirm")
public class ProducerController {
@Autowired
private RabbitTemplate rabbitTemplate;
@GetMapping("/sendMessage/{message}")
public void sendMessage(@PathVariable String message) {
CorrelationData correlationData = new CorrelationData("1");
rabbitTemplate.convertAndSend(ConfirmConfig.CONFIRM_EXCHANGE_NAME, ConfirmConfig.CONFIRM_ROUTING_KEY, message, correlationData);
log.info("发送消息内容为：{}", message);
}
}
|
- 消费者：
package com.atguigu.rabbitmq.springbootrabbitmq.consumer;
import com.atguigu.rabbitmq.springbootrabbitmq.config.ConfirmConfig;
import lombok.extern.slf4j.Slf4j;
import org.springframework.amqp.core.Message;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;
@Slf4j
@Component
public class Consumer {
@RabbitListener(queues = ConfirmConfig.CONFIRM_QUEUE_NAME)
public void receiveConfirmMessage(Message message) {
String msg = new String(message.getBody());
log.info("接收到的队列confirm.queue消息：{}", msg);
}
}
|
- 回调接口
package com.atguigu.rabbitmq.springbootrabbitmq.config;
import lombok.extern.slf4j.Slf4j;
import org.springframework.amqp.rabbit.connection.CorrelationData;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Component;
import javax.annotation.PostConstruct;
@Slf4j
@Component
public class MyCallBack implements RabbitTemplate.ConfirmCallback {
@Autowired
private RabbitTemplate rabbitTemplate;
@PostConstruct
public void init() {
rabbitTemplate.setConfirmCallback(this);
}
@Override
public void confirm(CorrelationData correlationData, boolean ack, String cause) {
String id = correlationData != null ? correlationData.getId() : "";
if (ack) {
log.info("交换机已经收到id为：{}的消息", id);
} else {
log.error("交换机还未收到id为:{}的消息，由于原因：{}", id, cause);
}
}
}
|
spring:
rabbitmq:
host: 59.110.171.189
port: 5672
username: admin
password: 123

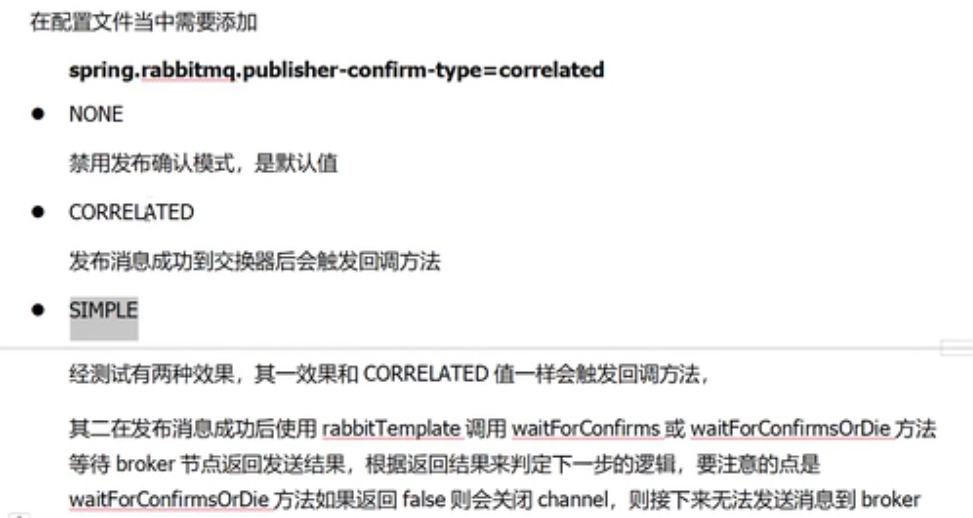

publisher-confirm-type: correlated # 消息确认机制
|

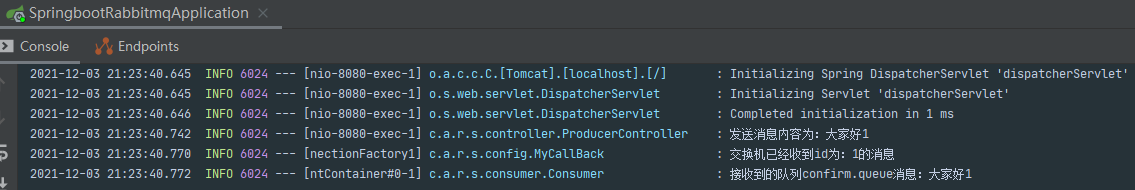

- 发送请求 : http://localhost:8080/confirm/sendMessage/大家好 1
- 测试交换机收不到消息：在发送消息中，将交换机名字后面拼接上"123"，再次启动，发送请求： http://localhost:8080/confirm/sendMessage/大家好 1

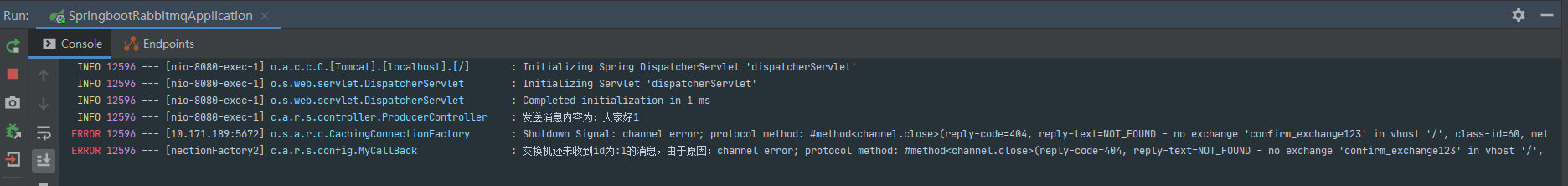

会得到：
- 测试队列收不到消息
package com.atguigu.rabbitmq.springbootrabbitmq.controller;
import com.atguigu.rabbitmq.springbootrabbitmq.config.ConfirmConfig;
import lombok.extern.slf4j.Slf4j;
import org.springframework.amqp.rabbit.connection.CorrelationData;
import org.springframework.amqp.rabbit.core.RabbitTemplate;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;
@Slf4j
@RestController
@RequestMapping("/confirm")
public class ProducerController {
@Autowired
private RabbitTemplate rabbitTemplate;
@GetMapping("/sendMessage/{message}")
public void sendMessage(@PathVariable String message) {
CorrelationData correlationData1 = new CorrelationData("1");
rabbitTemplate.convertAndSend(ConfirmConfig.CONFIRM_EXCHANGE_NAME,
ConfirmConfig.CONFIRM_ROUTING_KEY, message, correlationData1);
log.info("发送消息内容为：{}", message);
CorrelationData correlationData2 = new CorrelationData("2");
rabbitTemplate.convertAndSend(ConfirmConfig.CONFIRM_EXCHANGE_NAME,
ConfirmConfig.CONFIRM_ROUTING_KEY+"2", message, correlationData2);
log.info("发送消息内容为：{}", message);
}
}
|

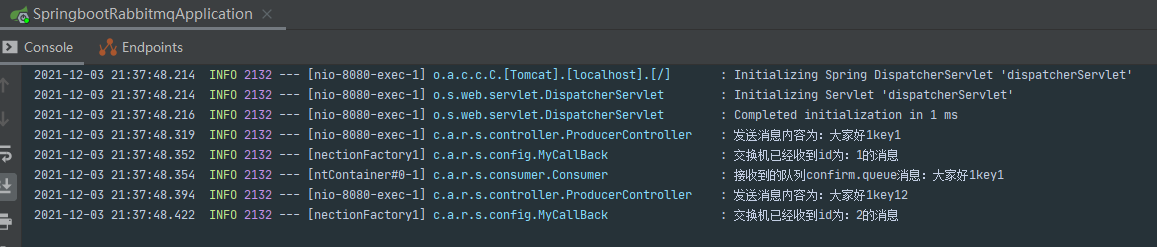

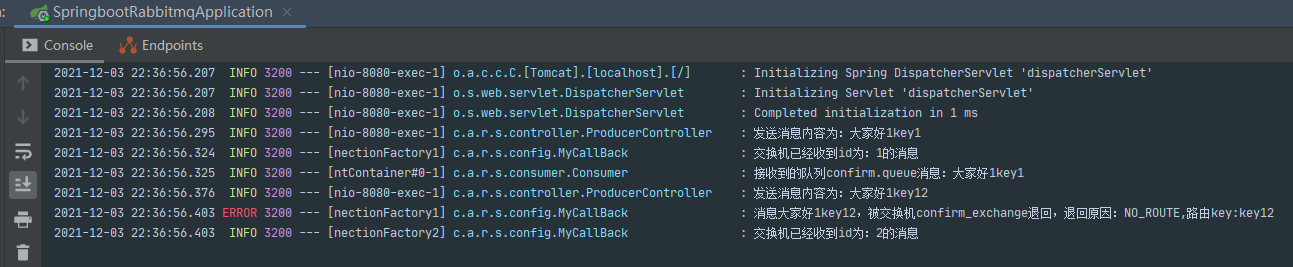

可见，队列没有收到消息，也没有应答和确认。
若队列收不到消息

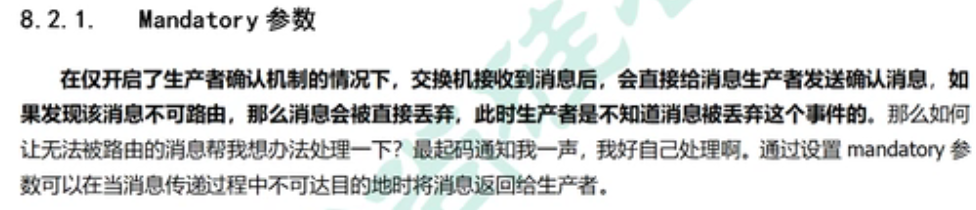

回退消息
spring:
rabbitmq:
host: 59.110.171.189
port: 5672
username: admin
password: 123
publisher-confirm-type: correlated # 消息确认机制
publisher-returns: true # 发布确认机制（消息在交换机那若路由失败，则会回退消息给生产者）
|
回退接口：
@PostConstruct
public void init() {
rabbitTemplate.setConfirmCallback(this);
rabbitTemplate.setReturnsCallback(this);
}
@Override
public void returnedMessage(ReturnedMessage returnedMessage) {
log.error("消息{}，被交换机{}退回，退回原因：{},路由key:{}",
new String(returnedMessage.getMessage().getBody()),
returnedMessage.getExchange(),
returnedMessage.getReplyText(),
returnedMessage.getRoutingKey());
}
|

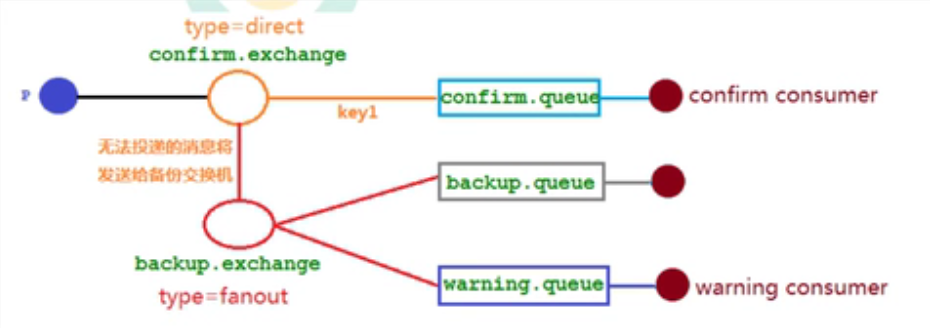

备份交换机
添加一个交换机和两个队列。
- 配置类
package com.atguigu.rabbitmq.springbootrabbitmq.config;
import org.springframework.amqp.core.*;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
@Configuration
public class ConfirmConfig {
public static final String CONFIRM_EXCHANGE_NAME = "confirm_exchange";
public static final String CONFIRM_QUEUE_NAME = "confirm_queue";
public static final String CONFIRM_ROUTING_KEY = "key1";
public static final String BACKUP_EXCHANGE_NAME = "backup_exchange";
public static final String BACKUP_QUEUE_NAME = "backup_queue";
public static final String WARNING_QUEUE_NAME = "warning_queue";
@Bean
public DirectExchange confirmExchange() {
return ExchangeBuilder.directExchange(CONFIRM_EXCHANGE_NAME).durable(true)
.withArgument("alternate-exchange", BACKUP_EXCHANGE_NAME).build();
}
@Bean
public Queue confirmQueue() {
return QueueBuilder.durable(CONFIRM_QUEUE_NAME).build();
}
@Bean
public Binding queueBindingExchange(@Qualifier("confirmQueue") Queue confirmQueue,
@Qualifier("confirmExchange") DirectExchange confirmExchange) {
return BindingBuilder.bind(confirmQueue).to(confirmExchange).with(CONFIRM_ROUTING_KEY);
}
@Bean
public FanoutExchange backupExchange() {
return new FanoutExchange(BACKUP_EXCHANGE_NAME);
}
@Bean
public Queue backupQueue() {
return QueueBuilder.durable(BACKUP_QUEUE_NAME).build();
}
@Bean
public Queue warningQueue() {
return QueueBuilder.durable(WARNING_QUEUE_NAME).build();
}
@Bean
public Binding backupQueueBindingBackupExchange(@Qualifier("backupExchange") FanoutExchange backupExchange, @Qualifier("backupQueue") Queue backupQueue) {
return BindingBuilder.bind(backupQueue).to(backupExchange);
}
@Bean
public Binding warningQueueBindingBackupExchange(@Qualifier("backupExchange") FanoutExchange backupExchange, @Qualifier("warningQueue") Queue warningQueue) {
return BindingBuilder.bind(warningQueue).to(backupExchange);
}
}
|
- 消费者（报警消费者）
package com.atguigu.rabbitmq.springbootrabbitmq.consumer;
import com.atguigu.rabbitmq.springbootrabbitmq.config.ConfirmConfig;
import lombok.extern.slf4j.Slf4j;
import org.springframework.amqp.core.Message;
import org.springframework.amqp.rabbit.annotation.RabbitListener;
import org.springframework.stereotype.Component;
@Component
@Slf4j
public class WarningConsumer {
@RabbitListener(queues = ConfirmConfig.WARNING_QUEUE_NAME)
public void receiveWarningMsg(Message message) {
String msg = new String(message.getBody());
log.error("报警发现不可路由消息：{}", msg);
}
}
|
发送请求：http://localhost:8080/confirm/sendMessage/大家好 1
备份交换机的优先级高于回退消息、
其他知识点
幂等性
优先级队列
实现优先级:
- 生产者：
package com.atguigu.rabbitmq.one;
import com.atguigu.rabbitmq.utils.RabbitMqUtils;
import com.rabbitmq.client.AMQP;
import com.rabbitmq.client.Channel;
import java.io.IOException;
import java.util.HashMap;
import java.util.Map;
import java.util.concurrent.TimeoutException;
public class Producer {
private static final String QUEUE_NAME = "hello1";
public static void main(String[] args) throws IOException, TimeoutException {
Channel channel = RabbitMqUtils.getChannel();
Map<String, Object> arguments = new HashMap<>();
arguments.put("x-max-priority", 10);
channel.queueDeclare(QUEUE_NAME, true, false, false, arguments);
for (int i = 0; i < 11; i++) {
String message = "info" + i;
if (i == 5) {
AMQP.BasicProperties properties = new AMQP.BasicProperties().builder().priority(5).build();
channel.basicPublish("", QUEUE_NAME, properties, message.getBytes());
} else {
channel.basicPublish("", QUEUE_NAME, null, message.getBytes());
}
}
System.out.println("消息发送完毕");
}
}
|
启动生产者：
- 消费者 :
package com.atguigu.rabbitmq.one;
import com.atguigu.rabbitmq.utils.RabbitMqUtils;
import com.rabbitmq.client.*;
import java.io.IOException;
import java.util.Arrays;
import java.util.concurrent.TimeoutException;
public class Consumer {
public static final String QUEUE_NAME = "hello1";
public static void main(String[] args) throws IOException, TimeoutException {
Channel channel = RabbitMqUtils.getChannel();
DeliverCallback deliverCallback = (consumerTag, message) -> {
System.out.println(new String(message.getBody()));
};
CancelCallback cancelCallback = consumerTag -> {
System.out.println("消息消费被中断");
};
channel.basicConsume(QUEUE_NAME, true, deliverCallback, cancelCallback);
}
}
|
启动消费者，
惰性队列
惰性队列执行性能不太好，因此默认情况下不使用惰性队列，而使用正常队列。
- 惰性队列从磁盘上读取消息，因此消费消息比较慢，但是内存消耗较小，在内存中只存储一些索引。一旦需要消费这些消息时，惰性队列会通过内存中的索引，去读取磁盘中相应的消息，到内存，再消费消息。
- 正常队列从内存中读取消息，因此消费消息比较快，但是内存消耗较大。
rabbitmq 集群
集群原理
镜像队列（备份）
高可用负载均衡
若节点 1 宕机了，生产者需要连接节点 2 或节点 3。
出现问题：生产者无法变更 rabbitmq 的 ip，此时需要借助外力 Haproxy。
Haproxy 实现高可用 负载均衡（高并发）
联合交换机
联邦队列
两个不同地区数据同步。
Shovel
wechat
alipay
